Lily58 Technician Keyboard Case
Lily58 Technician Keyboard Case
Lily58 Technician Keyboard Case
Lily58 Technician Keyboard Case
Lily58 Technician Keyboard Case
Lily58 Technician Keyboard Case

Lily58 Technician Keyboard Case

Regular price
$24.99
Sale price
$24.99
Quantity must be 1 or more

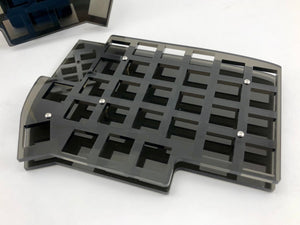

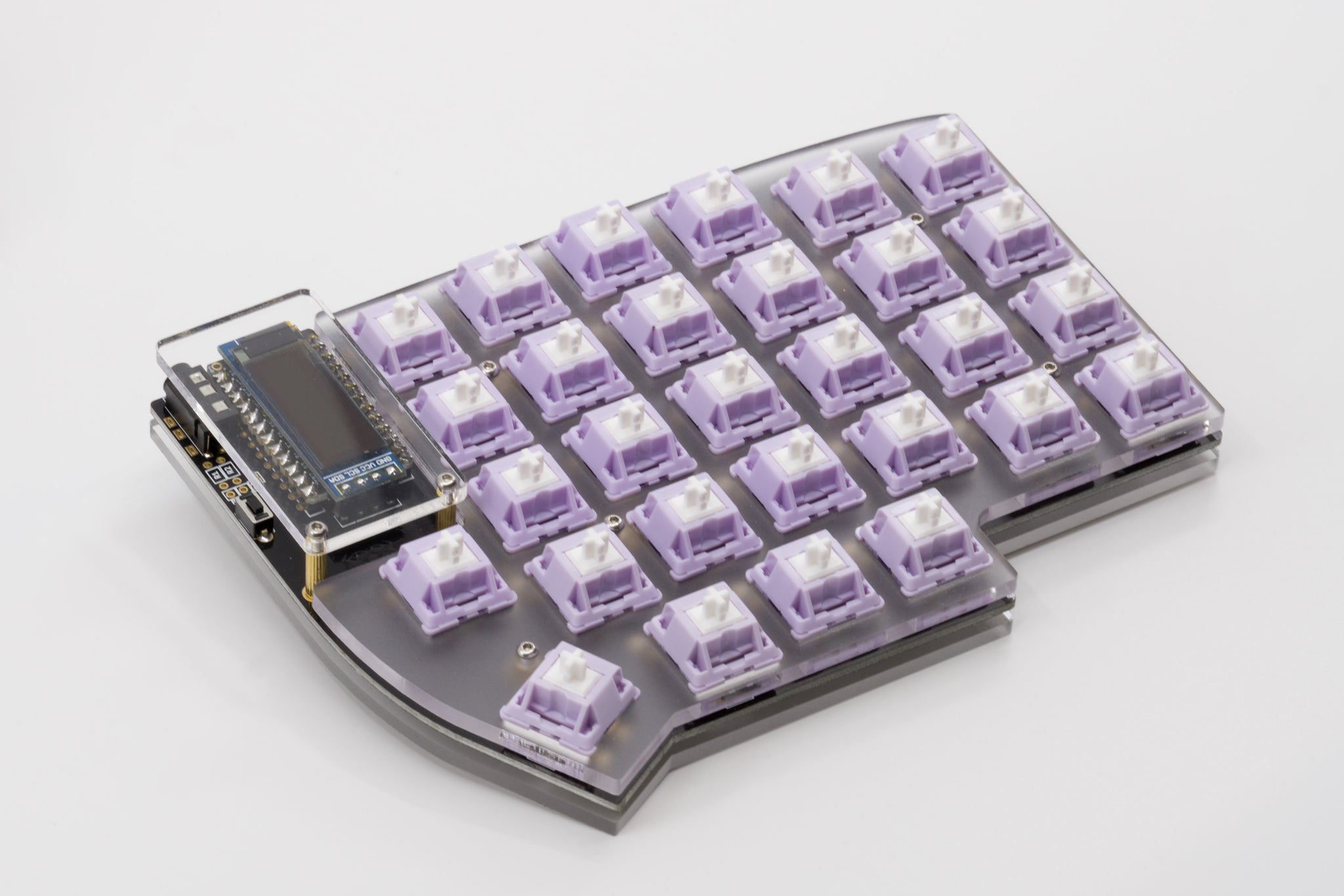

The Lily58 Technician keyboard case is made from 3mm thick acrylic. The Abrasion Resistant Clear Technician cases will always come with matching clear OLED covers made from the same abrasion resistant material regardless of the material chosen in the drop down.

Information about the Lily58 keyboard along with the source files from the designer can be found on the Lily58 Github repository. QMK key mappings and firmware can be found here.

The following components are included with the kit.

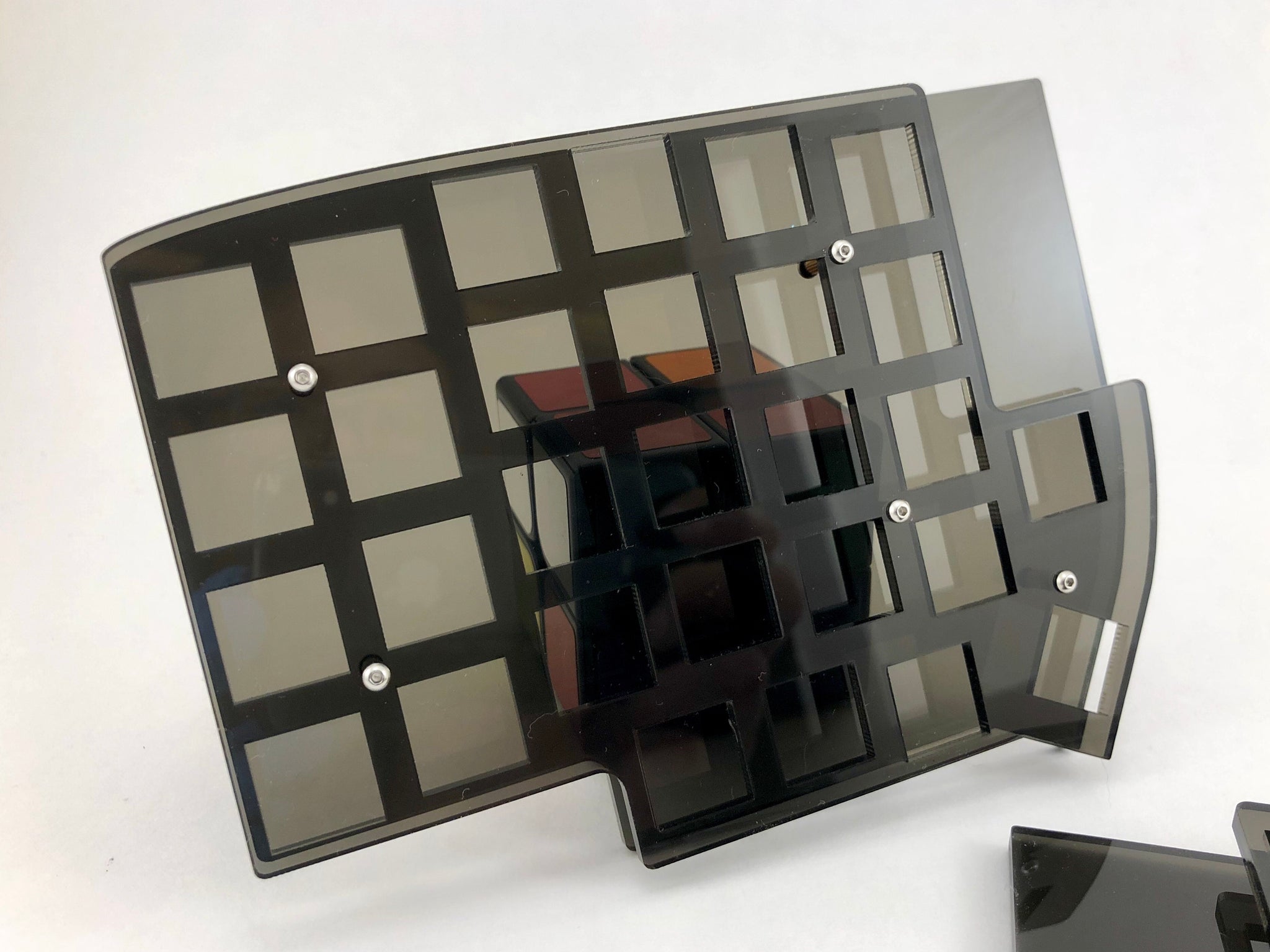

2 3mm Acrylic Switch Plate
2 3mm Acrylic Bottom Plate
2 3mm Acrylic OLED Cover
4 9mm M2 Spacer
10 6mm M2 Spacer
28 M2 Screw
10 3M Rubber Bumper



NOTE: Low profile switches will fit on the 3mm acrylic switch plates, however the fit is not perfect. 3mm switch plates will be taller than the choc switches. The taller switch plate prevents the choc switches from sitting directly on the PCB. This means the switch pins do not protrude as far into the PCB. This also means that the acrylic plates will sit directly on the PCB. The switches can still be soldered to the PCB and the keyboard will function just fine.

Hotswap PCBs are held in place by the sockets. The switch plate is taller so there is less pin to go into the socket. While everything works initially, there is no guarantee it will always work. Please use this configuration at your own risk. It has not been tested for long term reliability.
