Battery Combo for nice!nano Controller

Battery Combo for nice!nano Controller

Regular price
Sale price
Shipping calculated at checkout.
Quantity must be 1 or more

Batteries cannot be shipped outside of the US.

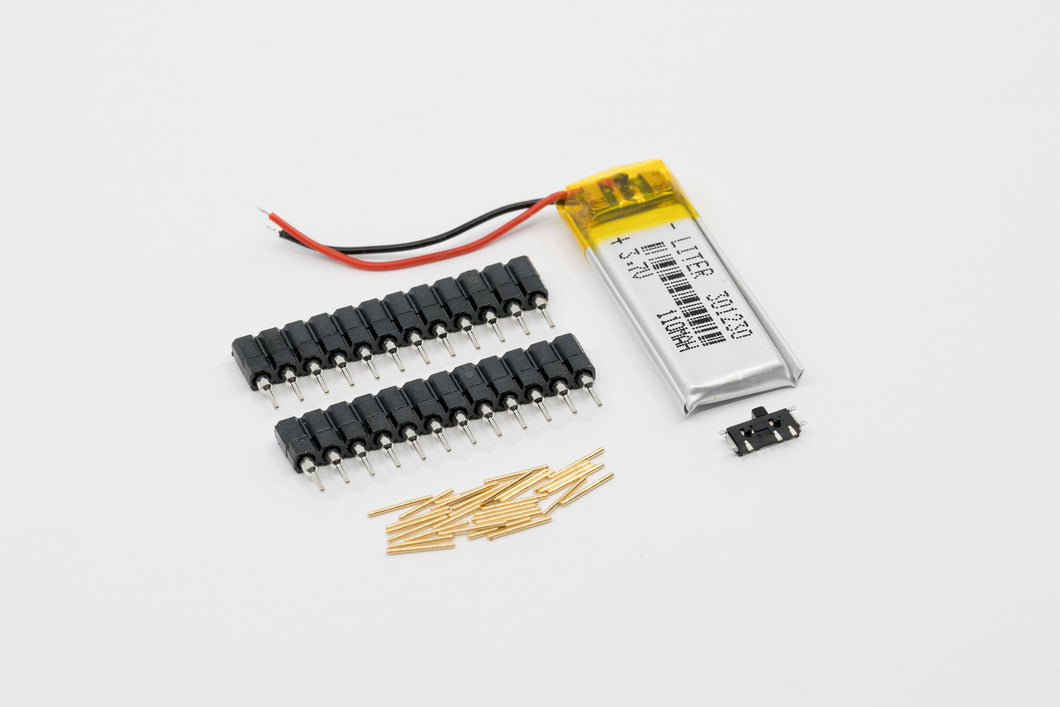

The Battery Combo for nice!nano microcontroller includes the following:

  • 110mAh Battery
  • 2x 12 Pin Sockets
  • 24x Mill-Max Pins
  • 1x On/Off Switch

This combo has everything you need to get a wireless setup going with your nice!nano microcontroller. The taller sockets allow for the small battery to be tucked underneath the microcontroller. Mill-Max pins allow for quick socketing since they're already the perfect height.

The On/Off switch uses a 7pin SMD footprint, but can be adapted to fit in other applications with hot glue and some careful soldering. The switch can be wired in line with one of the battery wires.

Battery Specifications

Capacity: 110mAh
Internal resistance: <150

Charging times: More than 600 times
Charging voltage: 4.2 ± 0.03V
Working temperature: -20 ℃ ~ 60 ℃
Thickness: 3mm
Width: 12mm
Length: 30mm
