The Reviung39 keyboard is a 39 key (37.5%) layout featuring a 3x12 grid with 3 additional thumb keys. The PCB has footprints for Kailh MX Hotswap sockets and allows for the use of a 2u stabilizer for the center key in the thumb cluster. The Reviung39 also includes support for RGB LEDs. There are 10 downward facing LEDs for underglow support and a single upward facing LED for additional accent lighting.

The Reviung39 keyboard was designed by keyboard designer gtips. Additional information about the Reviung39 keyboard along with the source files from the designer can be found on the Reviung39 Github Repository. QMK key mappings and firmware can be found here.

Kits must be assembled in order to be used. The following components are included with each kit.

1	PCB
1	Reset Switch
39	Surface Mount Diodes
39	Kailh MX Sockets
11	RGB LEDs
1	Matte Black FR4 Switch Plate
1	Bottom Plate
11	Standoffs
22	Screws

Options

Please note that some options will add additional items to the cart. Removing component items from the cart will delay order processing.

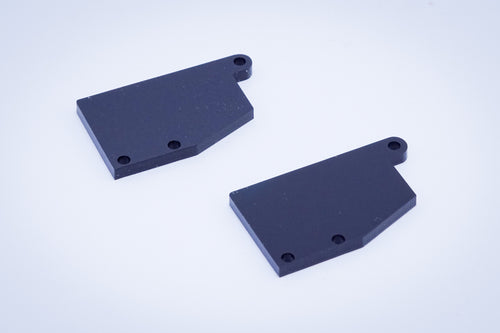

MCU Cover - Optional acrylic cover for the MCU. Includes mounting hardware. Does not include spacers, so it is important to mount the MCU as low as possible.
Switch Plate - Material choices for the switch plate
Middle Layers for 1.5mm Switch Plate - Includes 2 acrylic middle layers. One goes between the switch plate and PCB. The other goes between the PCB and bottom plate. For use with 1.5mm switch plates.
Middle Layers for 3mm Switch Plate - Includes 2 acrylic middle layers. One goes between the switch plate and PCB. The other goes between the PCB and bottom plate. For use with 3mm switch plates.
Bottom Plate - Material choices for the bottom plate

Additional Notes

The following components are required in order to have a completed keyboard.

1	Pro Micro or equivalent
39	Cherry MX switches
39	Keycaps
1	USB Cable
