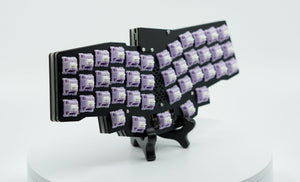

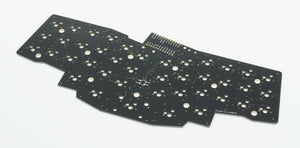

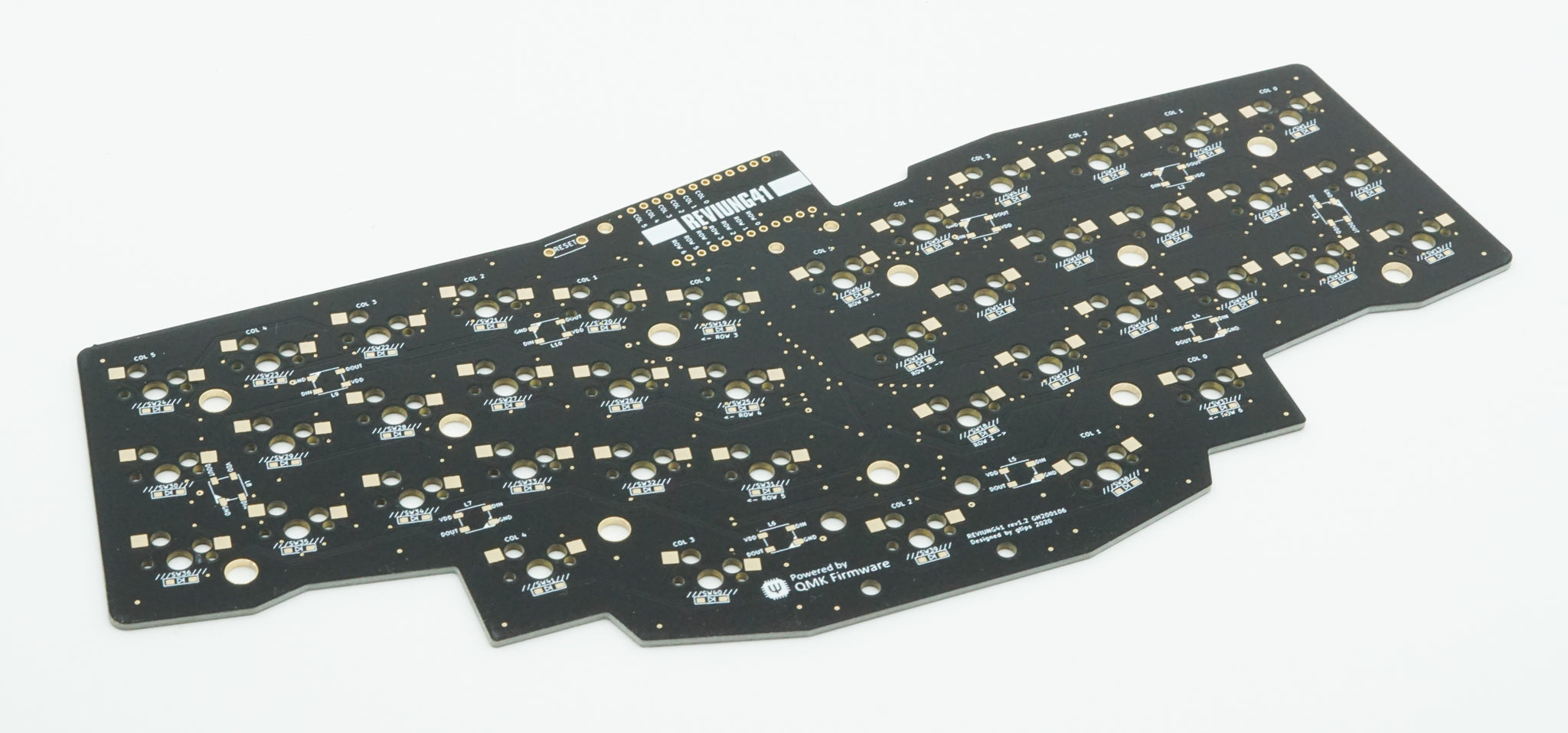

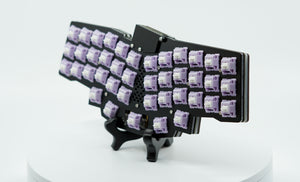

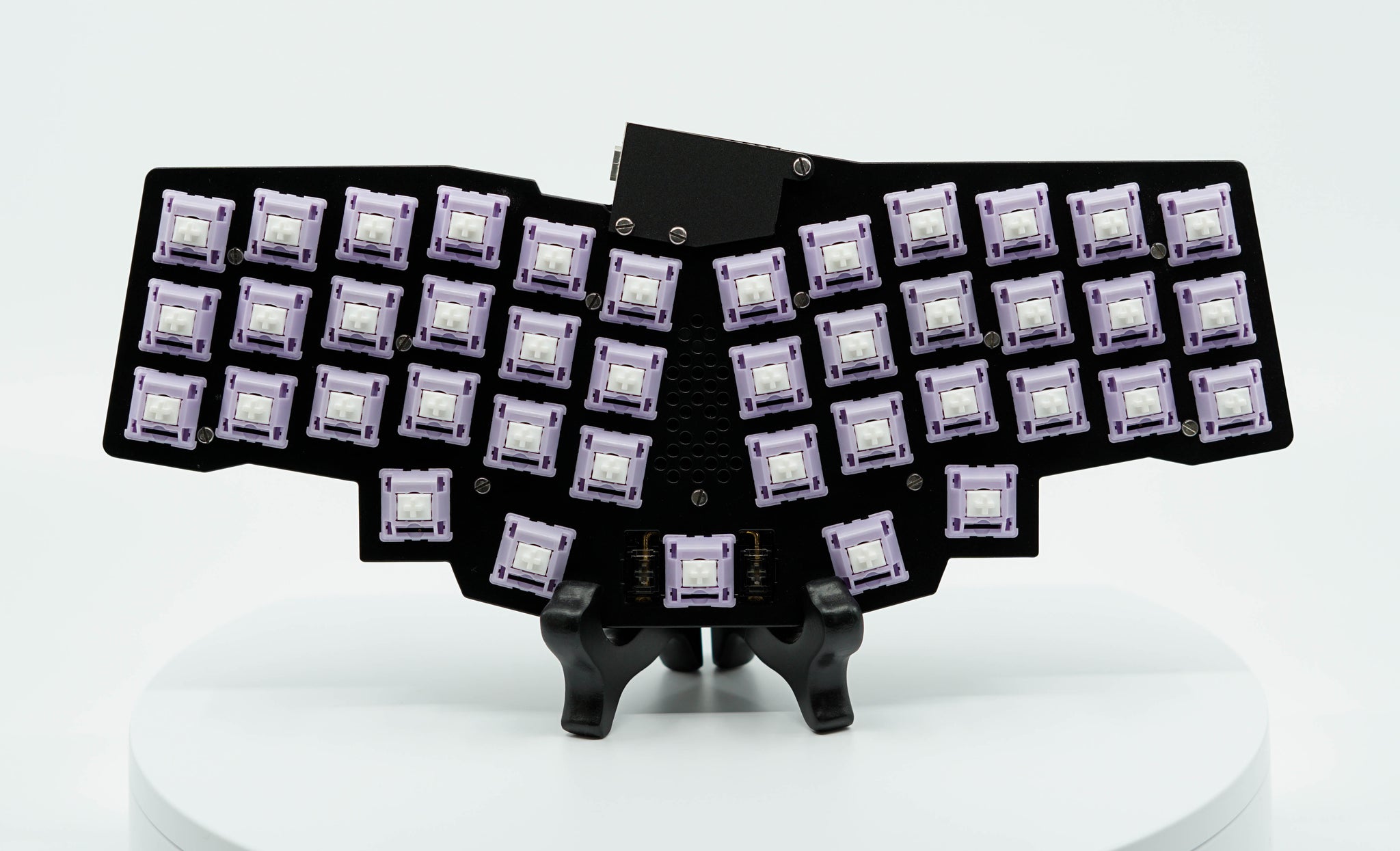

The Reviung41 keyboard is a 41 key layout featuring a 3x12 grid with 5 additional thumb keys. The PCB has footprints for Kailh MX Hotswap sockets and allows for the use of a 2u stabilizer for the center key in the thumb cluster. The Reviung41 also includes support for RGB LEDs. There are 10 downward facing LEDs for underglow support and a single upward facing LED for additional accent lighting.
Each kit includes upper and lower middle layers that result in a very solid build. The upper layers consist of 2mm EVA foam and 1.5mm clear acrylic. The lower middle layer is made from 3mm frosted acrylic. The frosted material diffuses RGB lighting to enhance the effect.

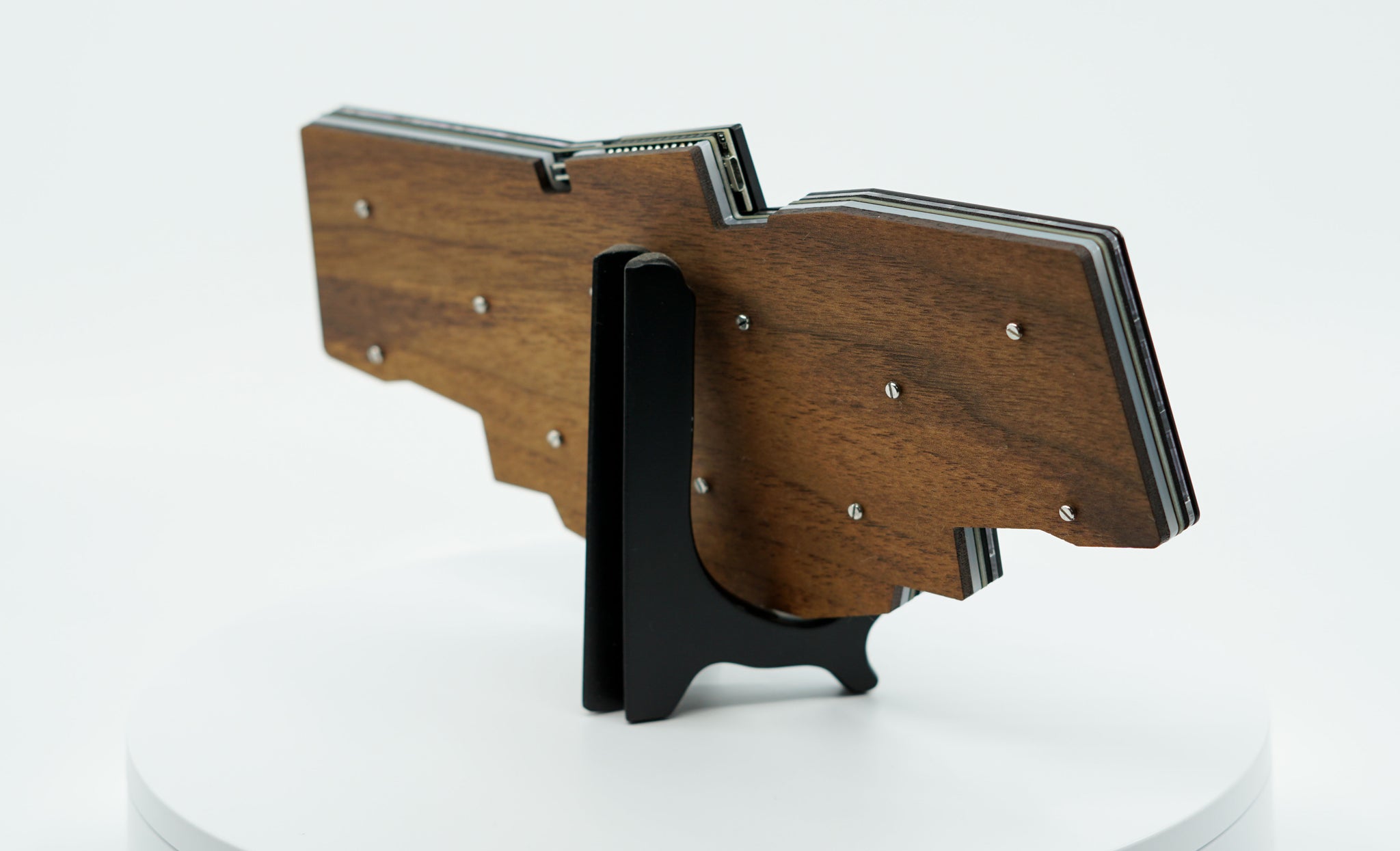

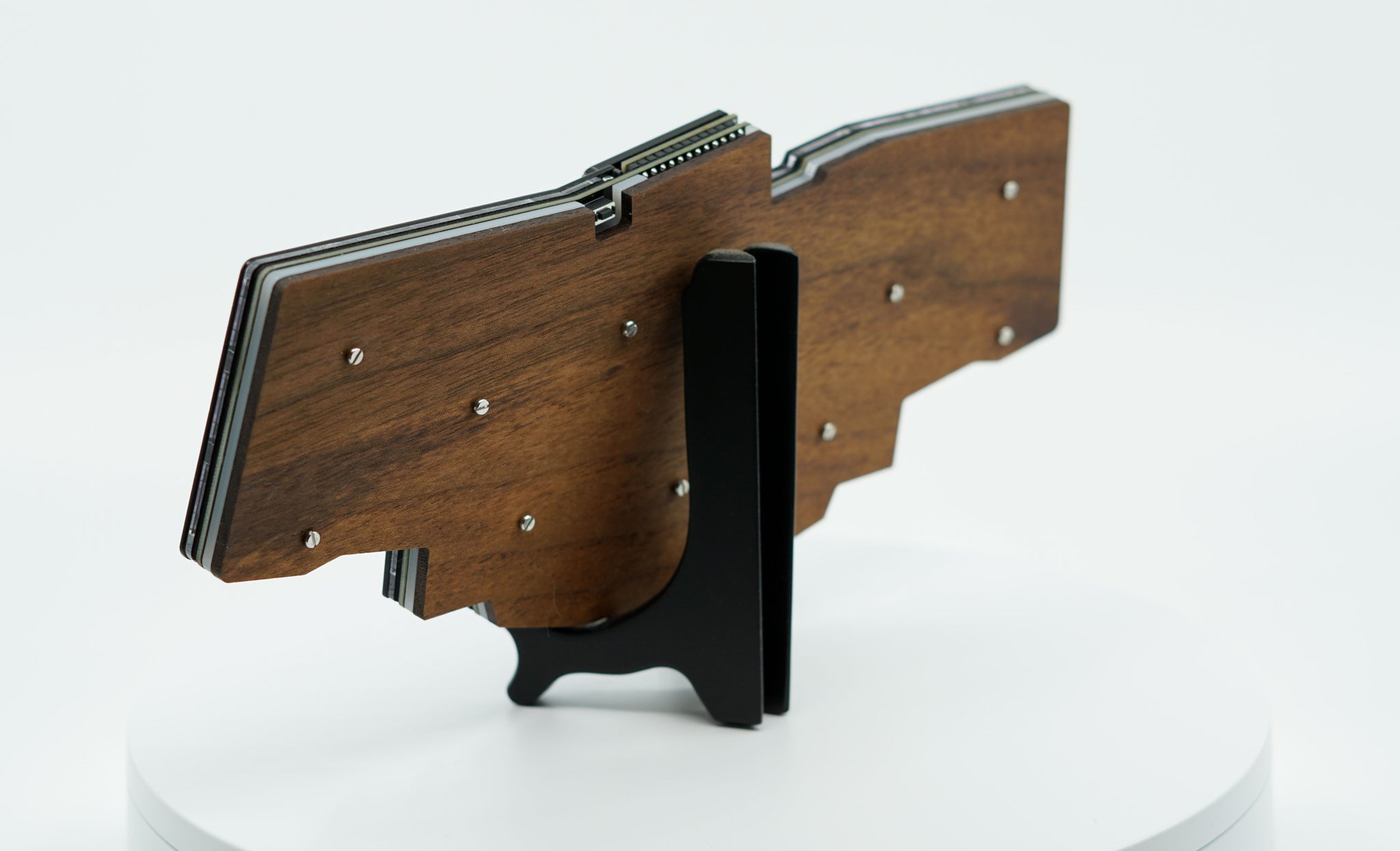

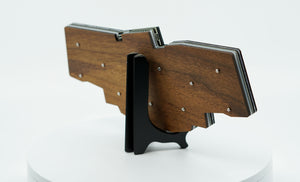

The top layer is made from stainless steel and is powdercoated black for a durable finish. The walnut bottom layer is made from real walnut hardwood. Please be careful not to overtighten screws during assembly.
The Reviung41 keyboard was designed by keyboard designer gtips. Additional information about the Reviung41 keyboard along with the source files from the designer can be found on the Reviung41 Github Repository. QMK key mappings and firmware can be found here.
Please note that this kit requires soldering and does not include switches, MCU, keycaps, or 2u stabilizer. The extra components shown in the product photos are for demonstration purposes only.
The build guide can be used for assembly. Another well written build guide can also be found here.
| 1 | PCB |
| 1 | Reset Switch |
| 41 | Surface Mount Diodes |
| 41 | Kailh MX Sockets |
| 11 | RGB LEDs |
| 1 | Black Acrylic MCU Cover |
| 1 | 1.5mm Black Stainless Steel Switch Plate |
| 1 | 2mm EVA Foam Upper Middle Layer |
| 1 | 1.5mm Clear Acrylic Upper Middle Layer |
| 1 | 3mm Frosted Acrylic Lower Middle Plate |
| 1 | 3mm Walnut Bottom Plate |
| 1 | Hardware Kit with Screws and Standoffs |
Additional Notes
The following components are needed in order to have a completed keyboard.
| 1 | Pro Micro or equivalent |
| 41 | MX compatible switches |
| 41 | Keycaps |
| 1 | 2u Stabilizer (Optional) |
| 1 | USB Cable |
