Introduction

Created by Japanese keyboard designer, @Salyicylic_acid3, the Naked60BMP is a a unique 60 key ortholinear keyboard. It is designed to utilize Kailh Low Profile Choc switches in order to be as thin as possible. The split alpha keys enable a more comfortable typing experience while the bottom row is arranged to allow more keys to be accessible without reaching.

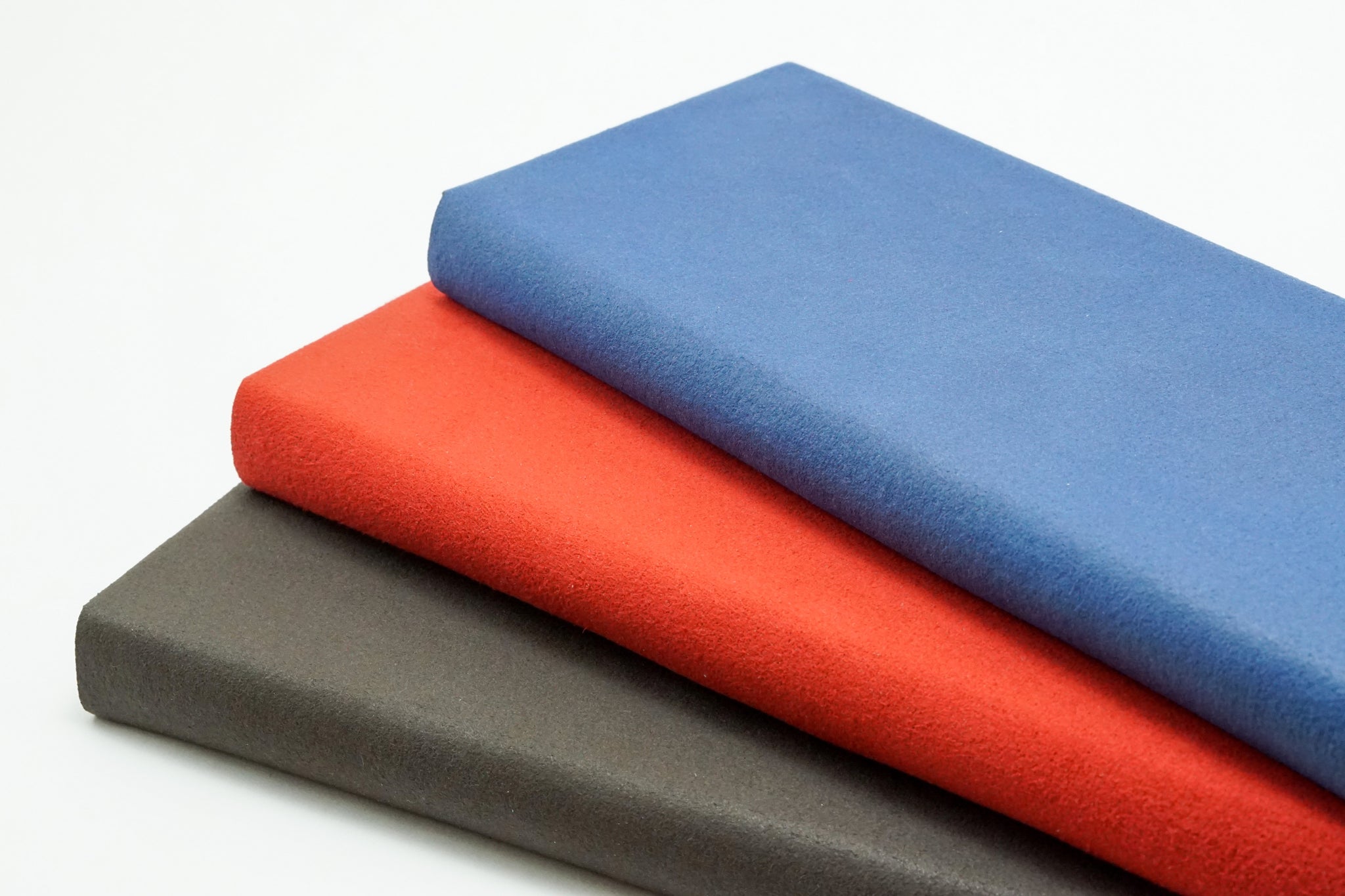

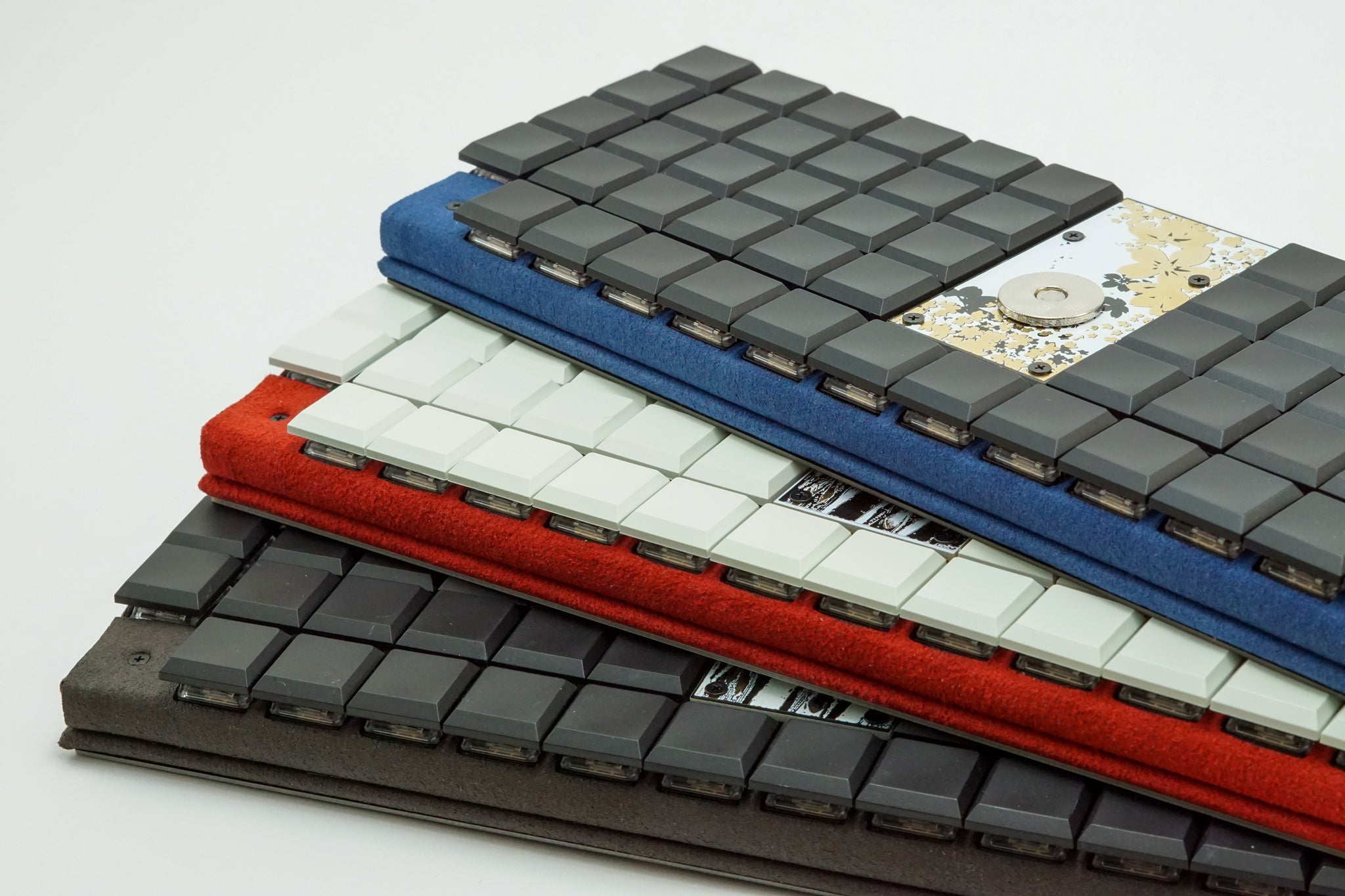

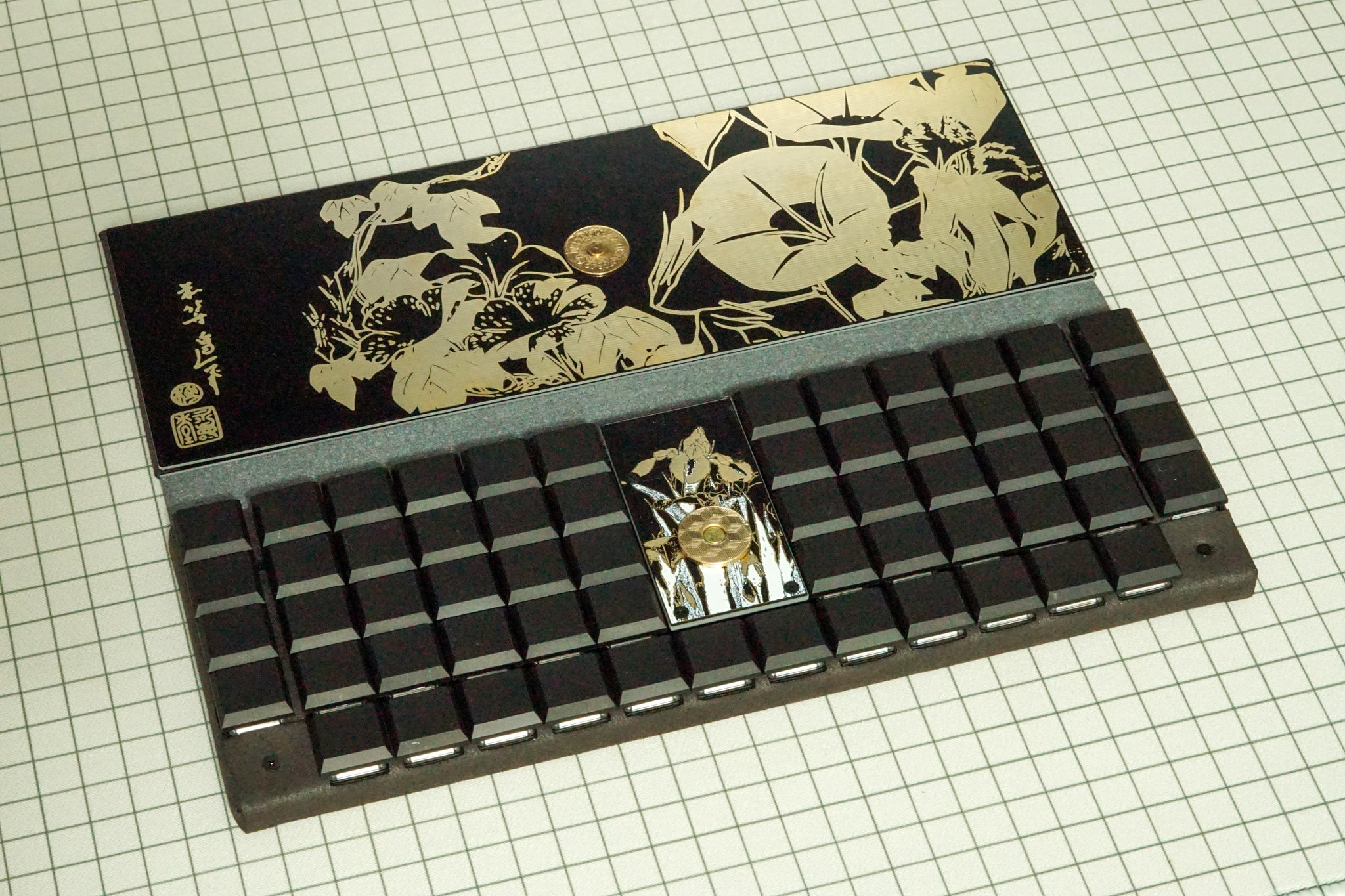

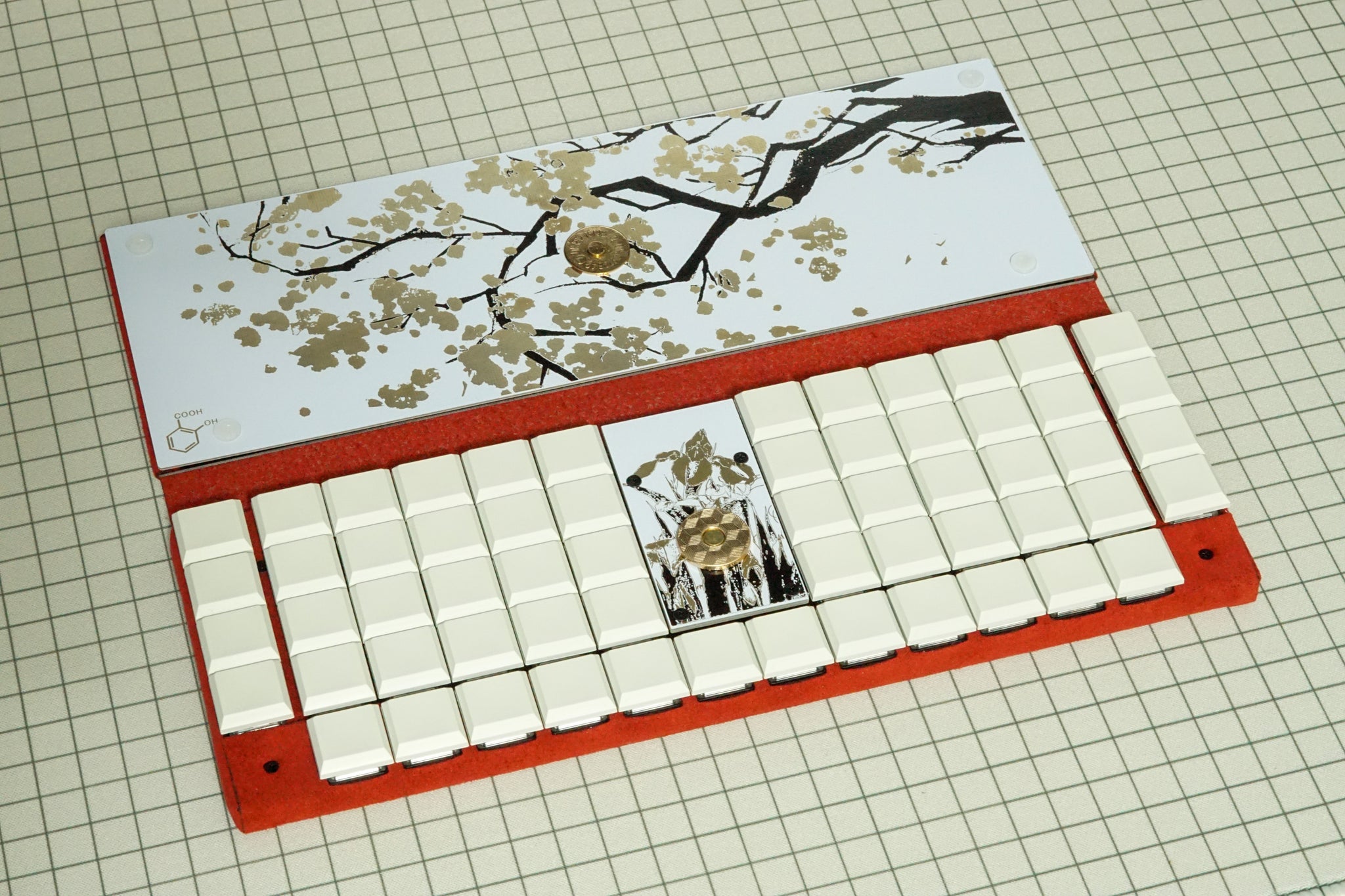

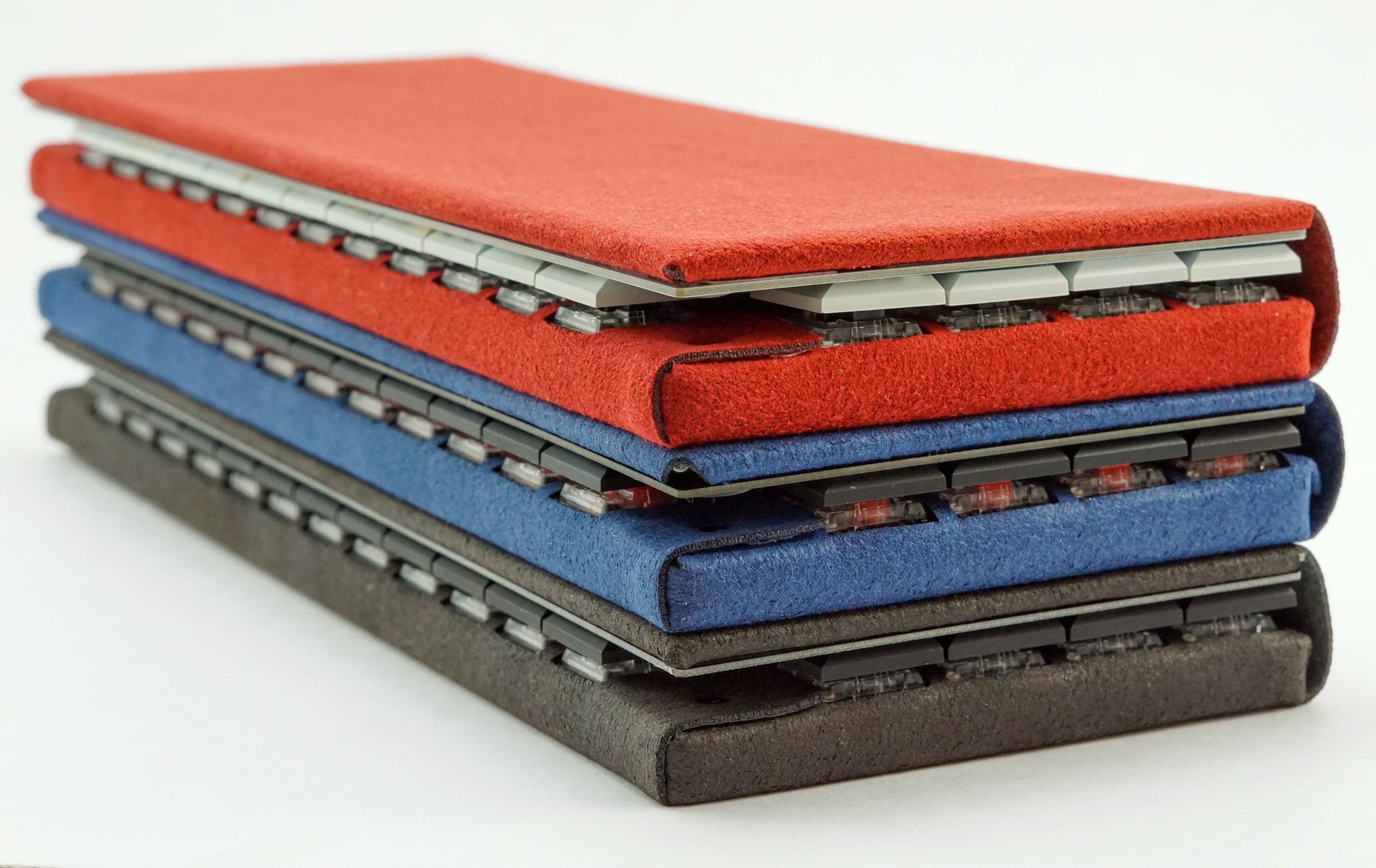

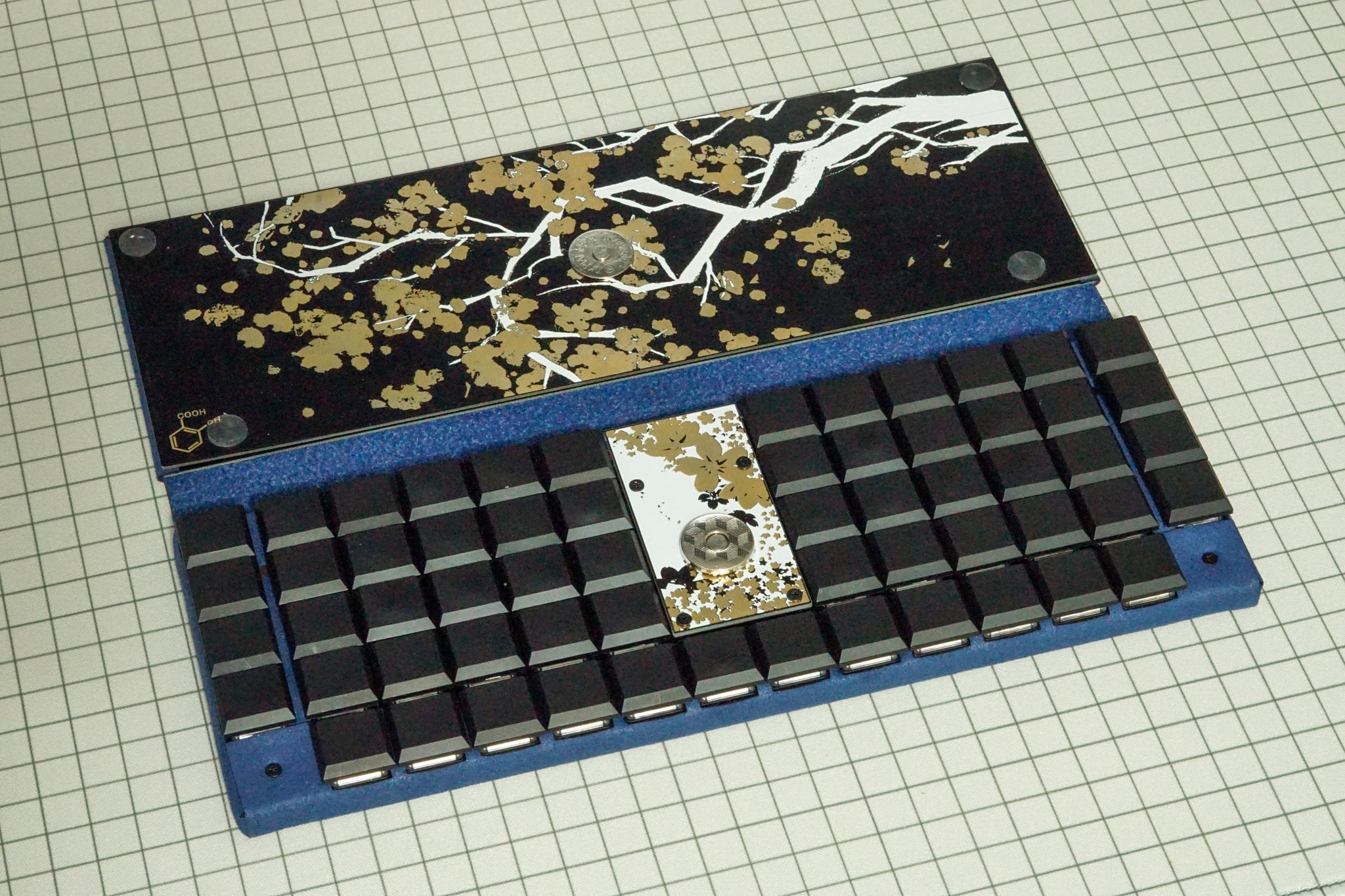

Each kit also comes with a red, blue, or black Yukata Cover. The Yukata Covers are made from a synthetic suede material similar to what you would find in a high end sports car. Each cover includes beautiful artwork printed on each side of a PCB plate. Black and blue Yukata Covers will come with artwork printed on a black background. Red Yukata Covers will ship with artwork printed on a white background.

Information on building the Naked60BMP can be found here. Example keymaps for the Naked60BMP can be found here.

Features

  • Hotswap Sockets for Choc Switches
  • Premium synthetic suede Yukata Cover
    • PCB Cover Art Plate designed with unique artwork on each side
  • Support for Setta 21 Numpad (not included with kit)
  • Support for BLE Micro Pro Bluetooth controller (supporting components not included with kit)

Kit Contents

  • 2x Middle Art Plate - PCB
  • 1x Top Plate - PCB
  • 1x Main Board - PCB
  • 1x Bottom Plate - PCB
  • 1x Cover Support - PCB
  • 1x Cover Art - PCB
  • 1x Cover Fabric
  • 1x Magnetic Clasp
  • 1x TRRS Jack
  • 1x Reset Switch
  • 60x Surface Mount Diode
  • 60x Kailh Choc Sockets
  • 28x M2 3mm Screw
  • 2x M2 4mm Screw
  • 10x M2 3.5mm Spacer
  • 4x M2 10mm Spacer
  • 4x Rubber Feet

Required Components

These components are required for a complete keyboard, but are not included with the kit.

  • 1x Pro Micro or Equivalent
  • 2x 12 Pin Low Profile Sockets (optional)
  • 60x Kailh Low Profile Choc Switches
  • 60x Kailh Low Profile Choc Keycaps
  • USB Cable

In addition to the components required to complete the kit, the following build materials are also needed to fully assemble the board.

  • Double Sided Tape
  • Waterproofing Spray (optional)
