Naked48LED Keyboard Kit

Introduction

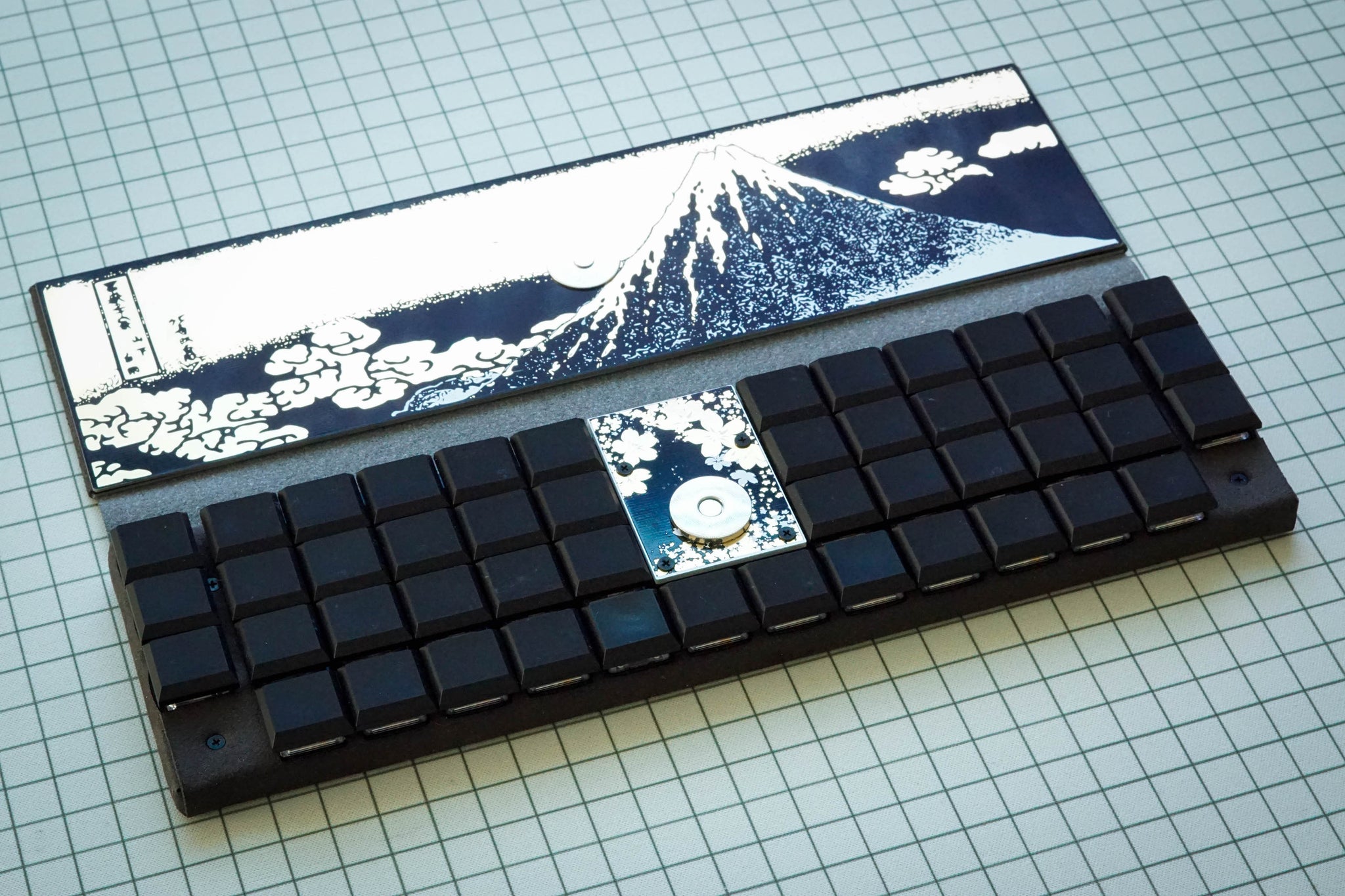

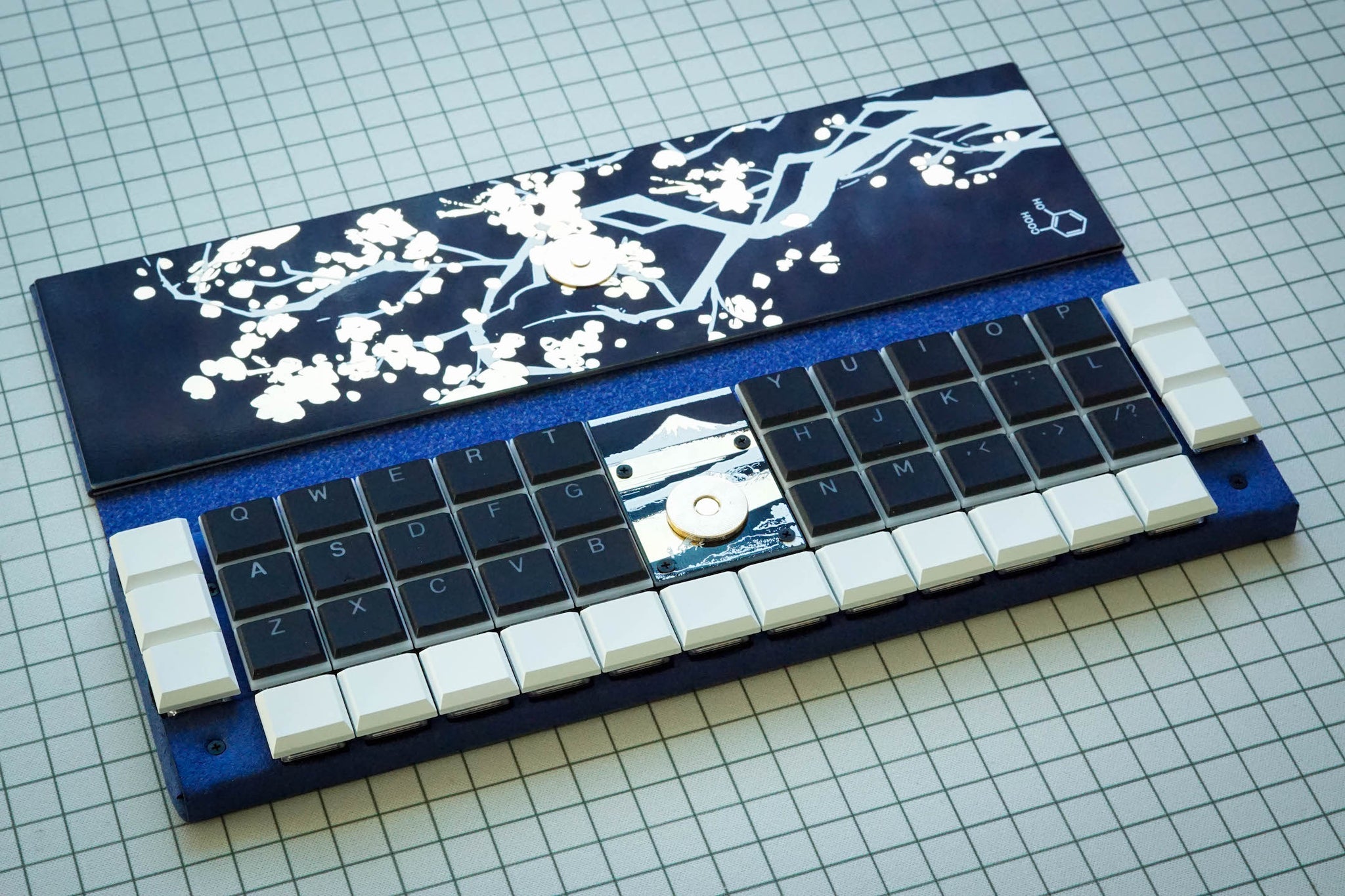

Created by Japanese keyboard designer, @Salyicylic_acid3, the Naked48LED is a unique 48 key ortholinear keyboard. It is designed to utilize Kailh Low Profile Choc switches in order to be as thin as possible. The split alpha keys enable a more comfortable typing experience while the bottom row is arranged to allow more keys to be accessible without reaching.

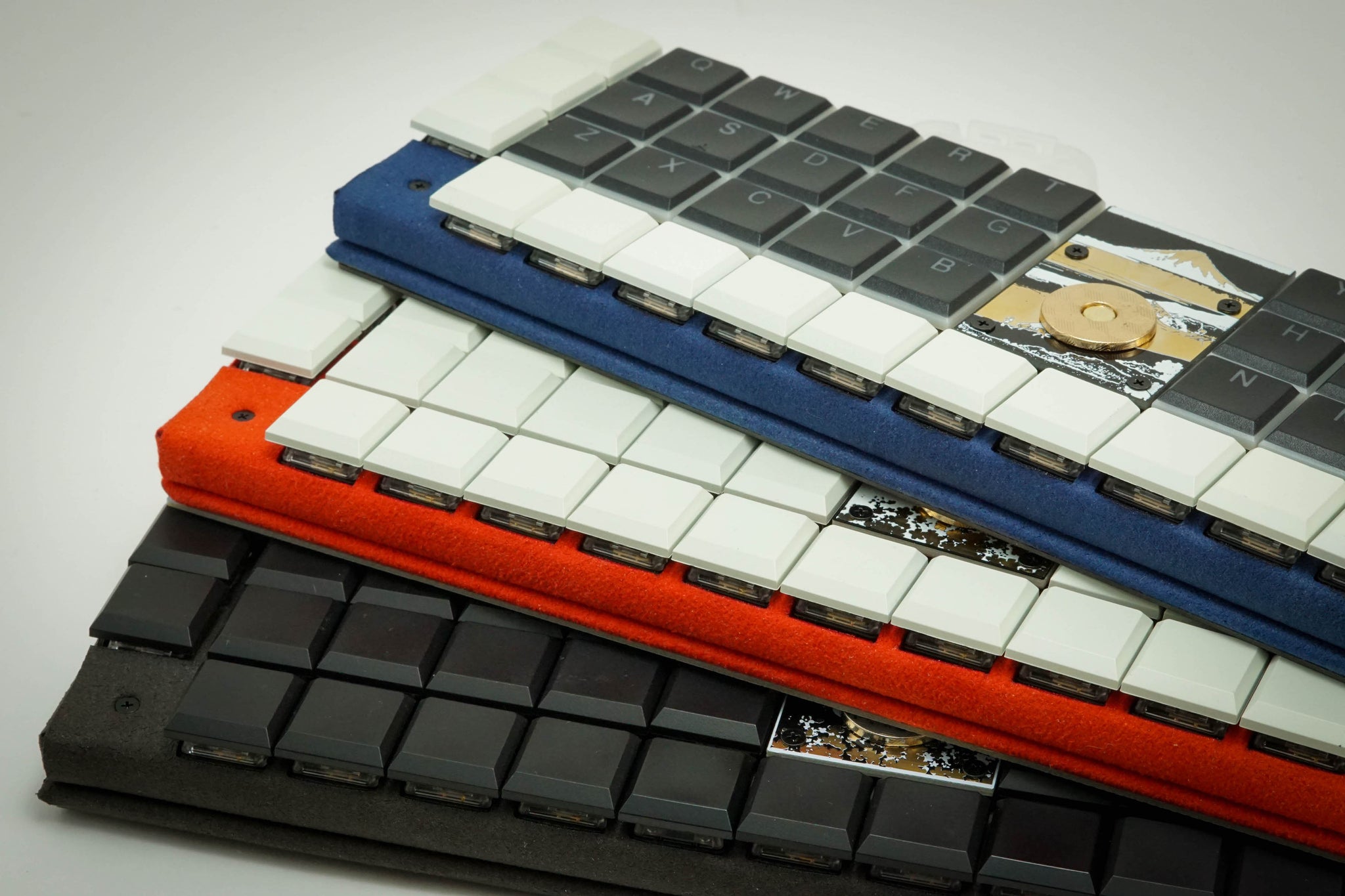

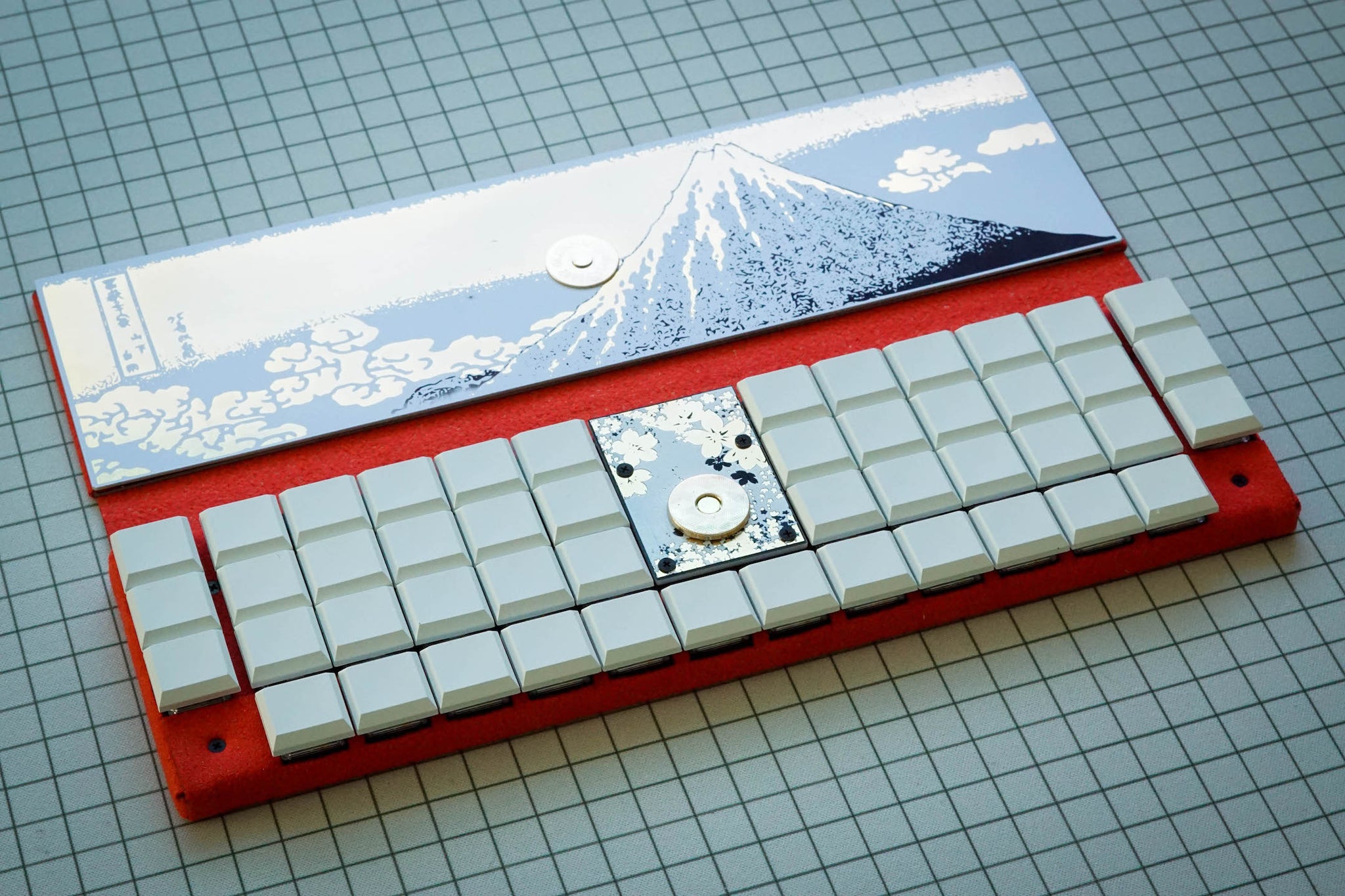

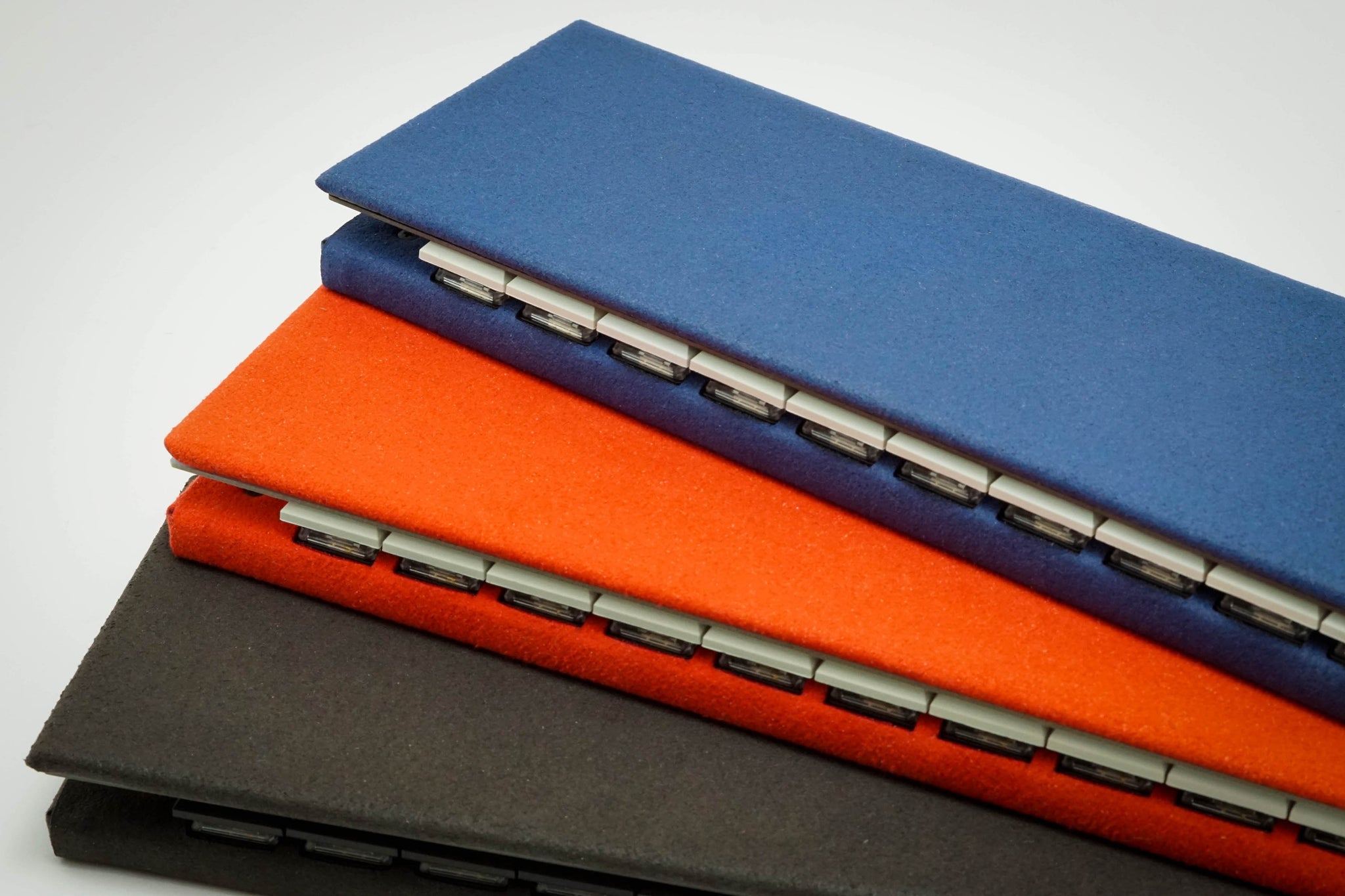

Each kit also comes with a red, blue, or black Yukata Cover. The Yukata Covers are made from a synthetic suede material similar to what you would find in a high end sports car. Each cover includes beautiful artwork printed on each side of a PCB plate. Black and blue Yukata Covers will come with artwork printed on a black background. Red Yukata Covers will ship with artwork printed on a white background.

Information on building the Naked48LED can be found here. Example keymaps for the Naked48LED can be found here.

Features

• Hotswap Sockets for Choc Switches
• Premium synthetic suede Yukata Cover
• PCB Cover Art Plate designed with unique artwork on each side

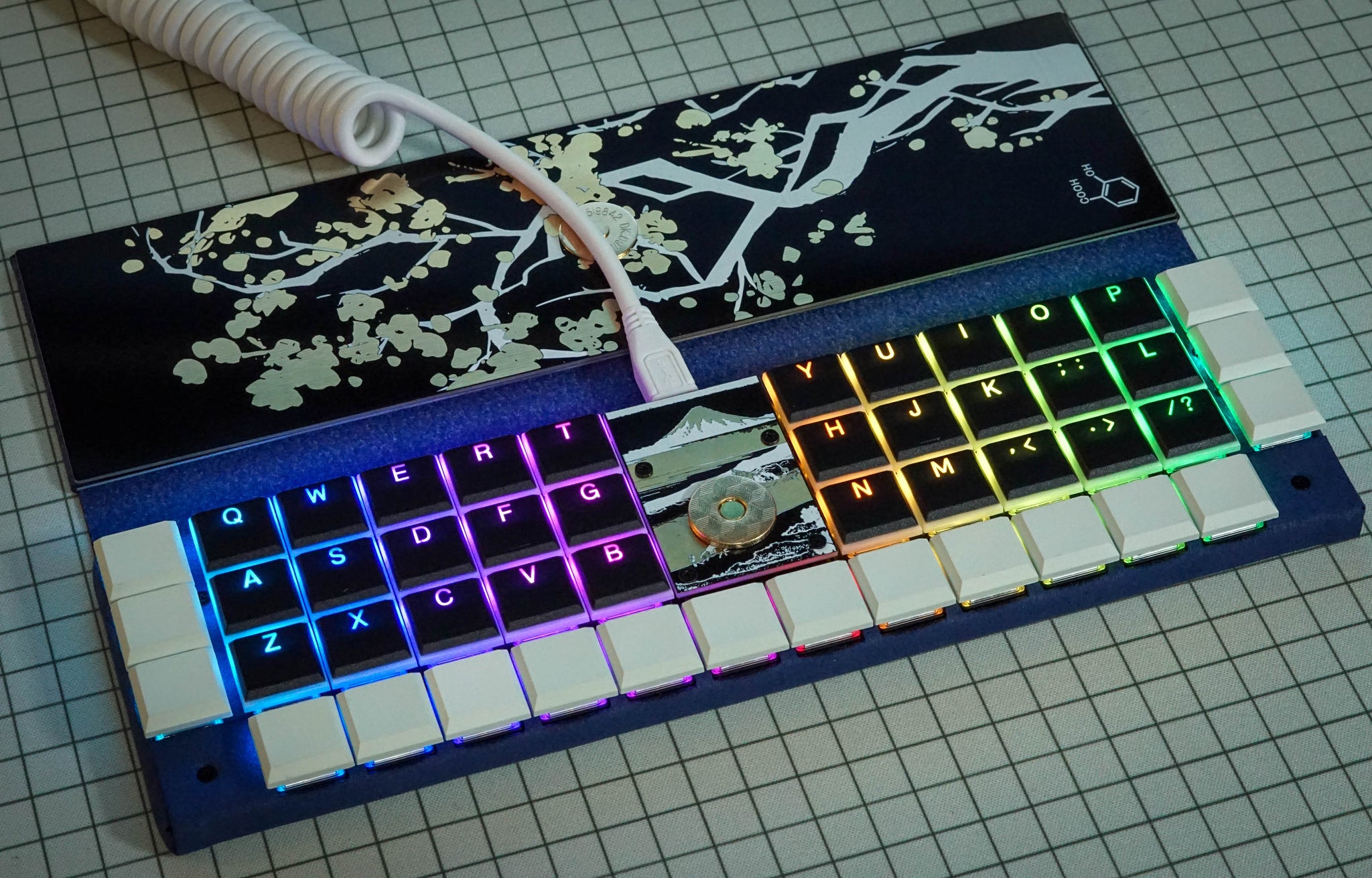

• Support for per key RGB LEDs
• Support for Setta 21 Numpad (not included with kit)
• Support for BLE Micro Pro Bluetooth controller (supporting components not included with kit)

Kit Contents

• 2x Middle Art Plate - PCB
• 1x Top Plate - PCB
• 1x Main Board - PCB
• 1x Bottom Plate - PCB
• 1x Cover Support - PCB
• 1x Cover Art - PCB
• 1x Cover Fabric
• 1x Magnetic Clasp
• 1x Reset Switch
• 48x Surface Mount Diode
• 48x Kailh Choc Sockets
• 28x M2 3mm Screw
• 2x M2 4mm Screw
• 10x M2 3.5mm Spacer
• 4x M2 10mm Spacer
• 4x Rubber Feet

Required Components

These components are required for a complete keyboard, but are not included with the kit.
