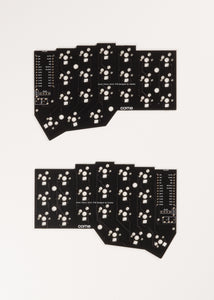

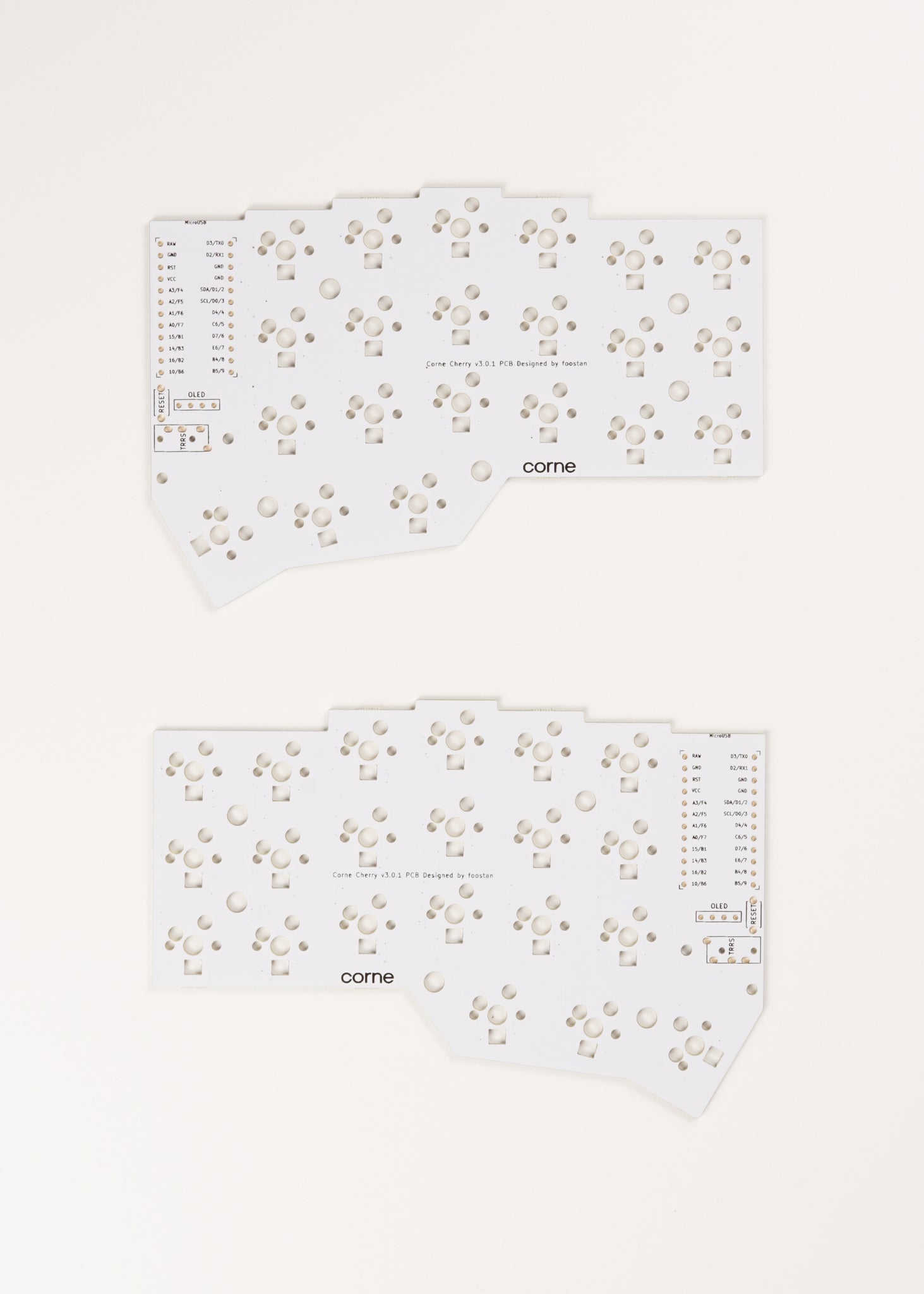

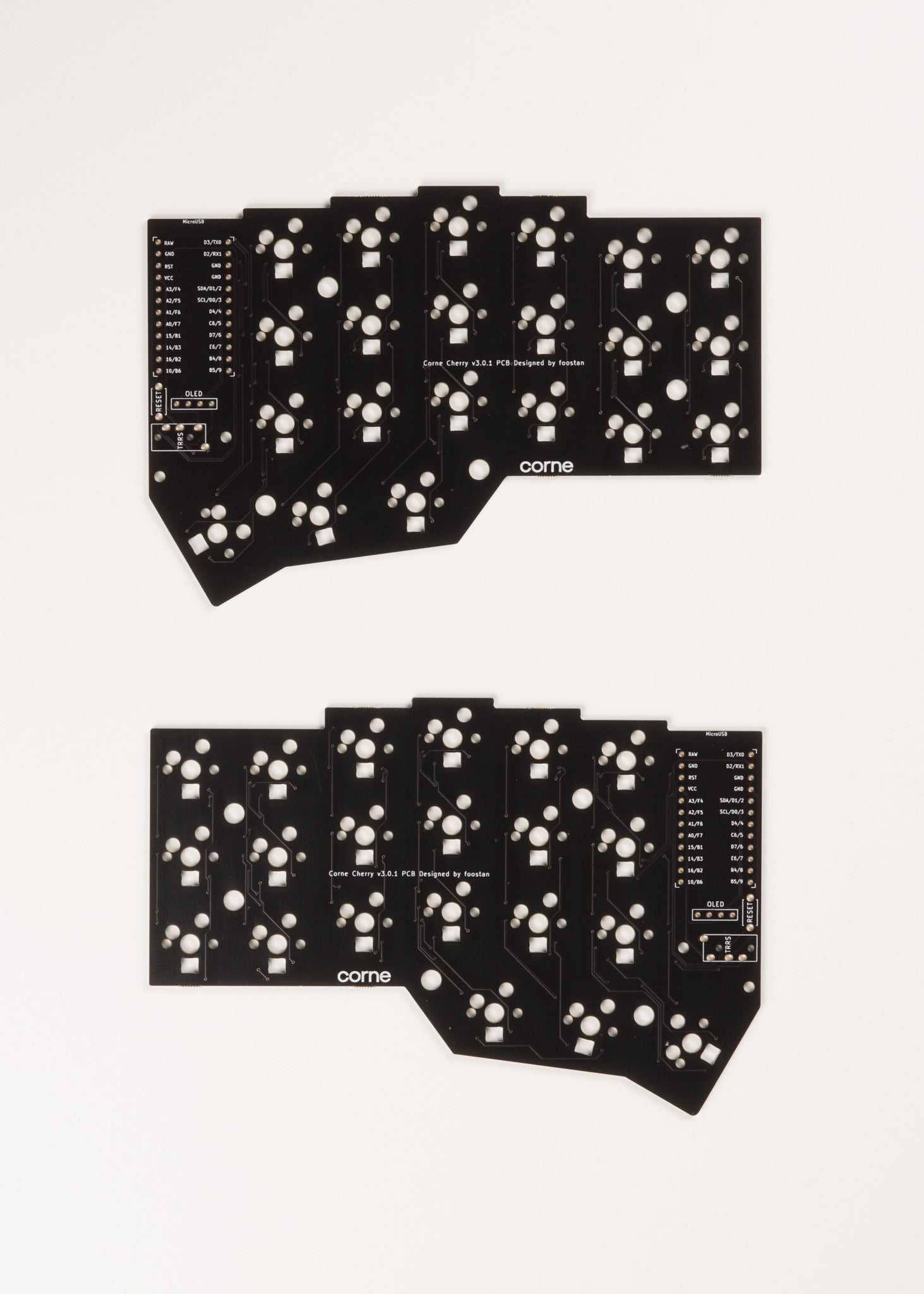

The Corne Keyboard is a split ergonomic design that features a 3x6 column staggered layout with a three key thumb cluster. The Corne layout has many distinguishing features that set it apart from other ergonomic keyboards. The small layout keeps all keys within one unit of the home row. The keyboard also includes footprints for RGB lighting under each switch as well as 6 downward facing LEDs for underglow lighting. The PCBs also include footprints for OLED screens. By default, the screens display the current layer and information about recently pressed keys.
The Corne keyboard was designed by world renowned keyboard designer Foostan. Additional information about the CRKBD keyboard along with the source files from the designer can be found on the Corne Github Repository. QMK key mappings and firmware can be found here.
NOTE: This PCB kit is not compatible with high profile cases like the CIO and Architect. These PCBs work best with Analyst, Technician, and Comptroller cases.

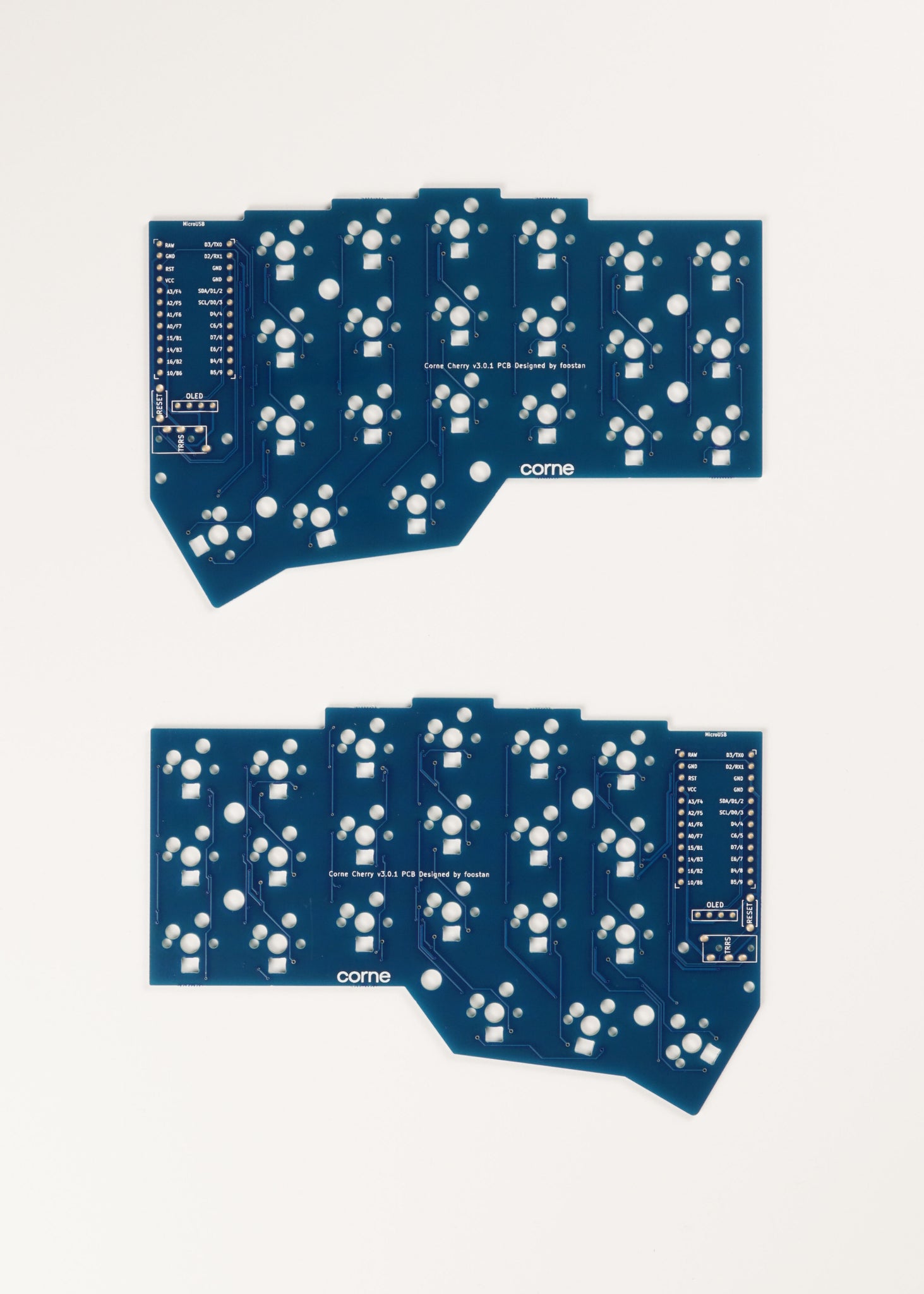

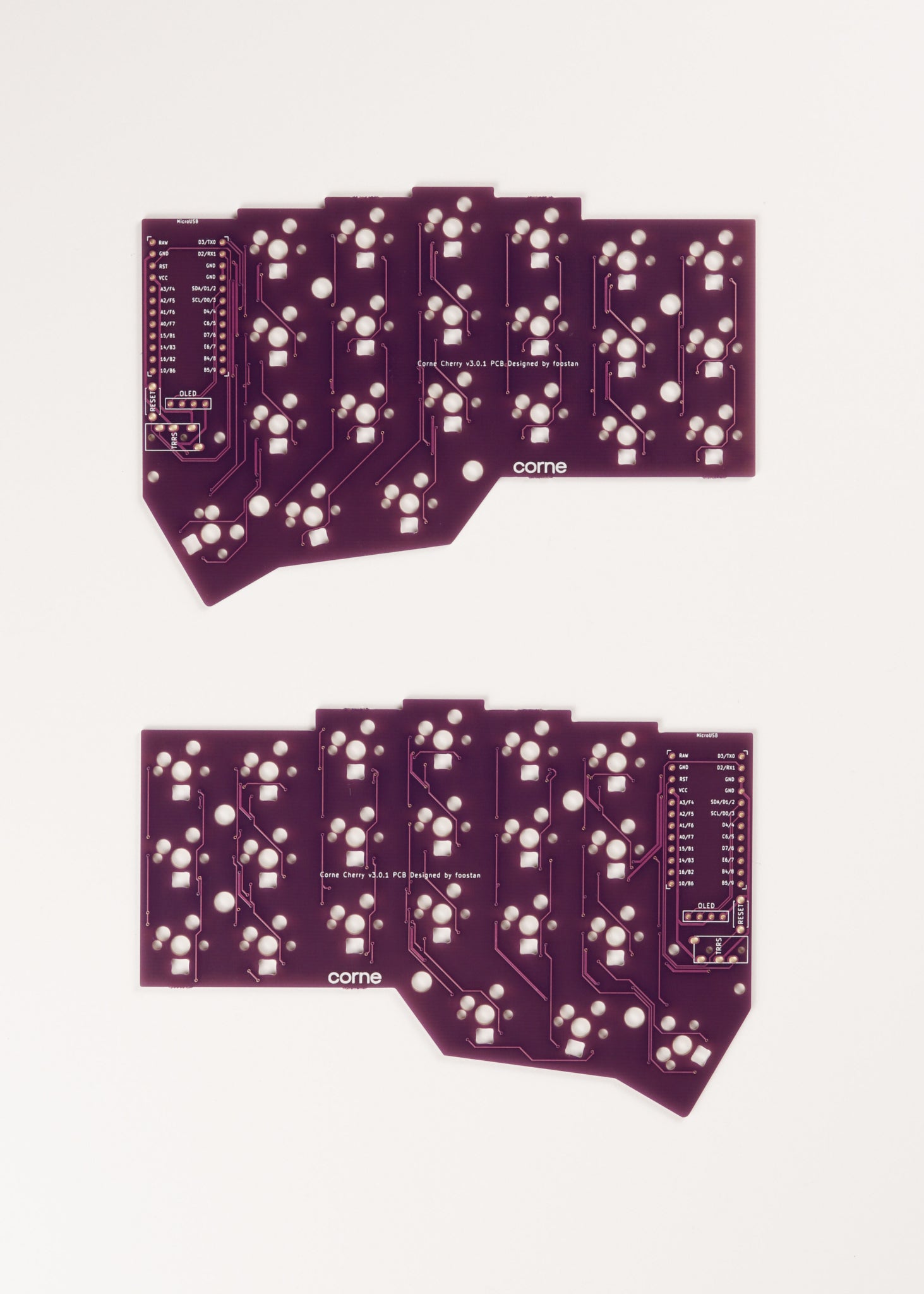

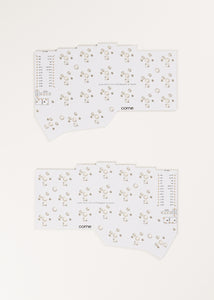

|Switches must be soldered in to place. Compatible with Cherry MX and Kailh Low Profile Choc switches. PCBs can be purchased here.|
|PCBs utilize Kailh MX Hotswap Sockets that can only be used with Cherry MX compatible switches.|
|PCBs utilize Kailh Choc Hotswap Sockets that can only be used with Kailh Low Profile Choc switches. PCBs can be purchased here.|

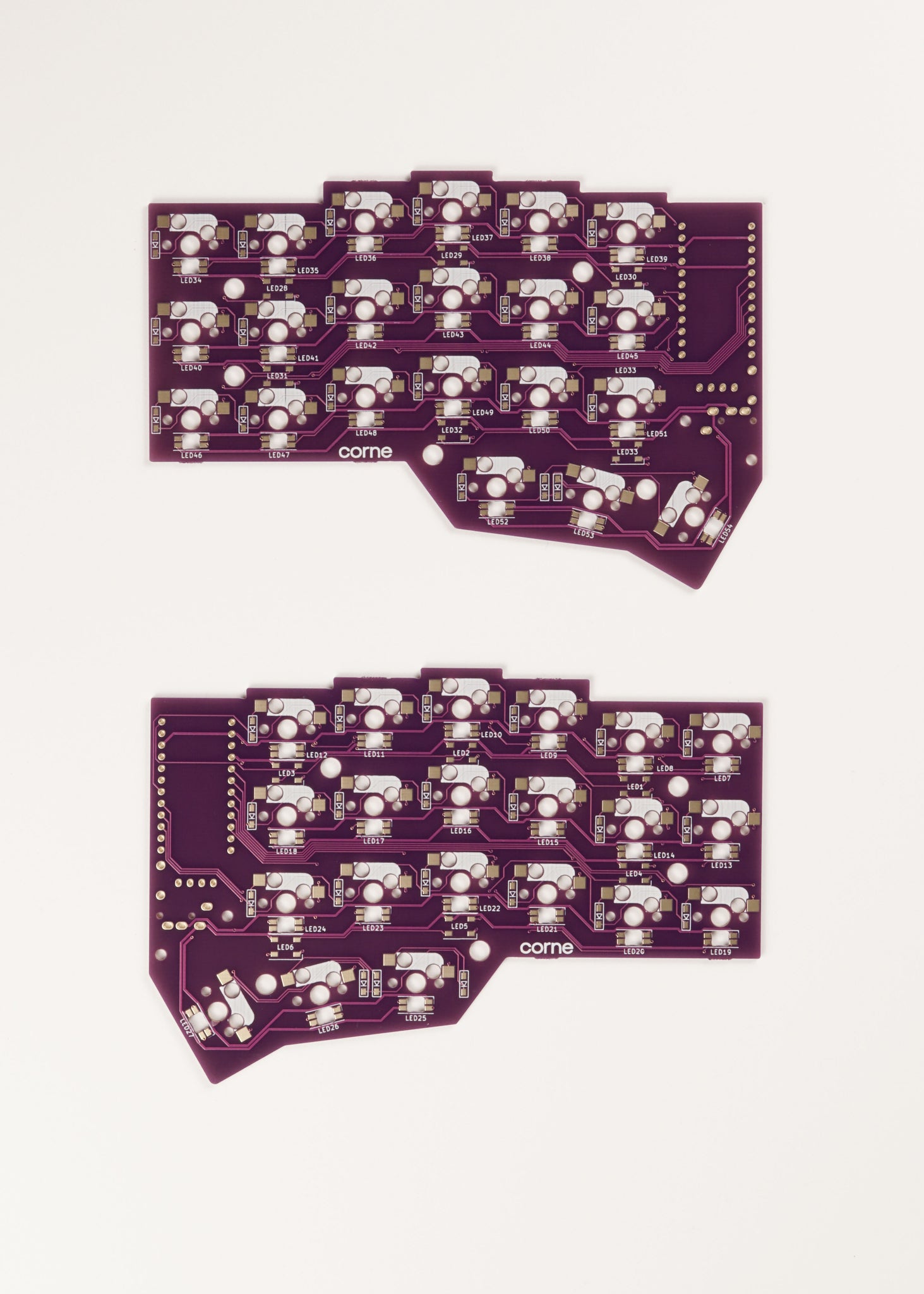

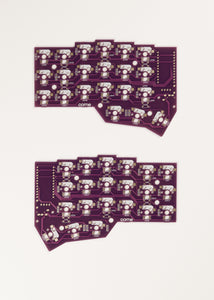

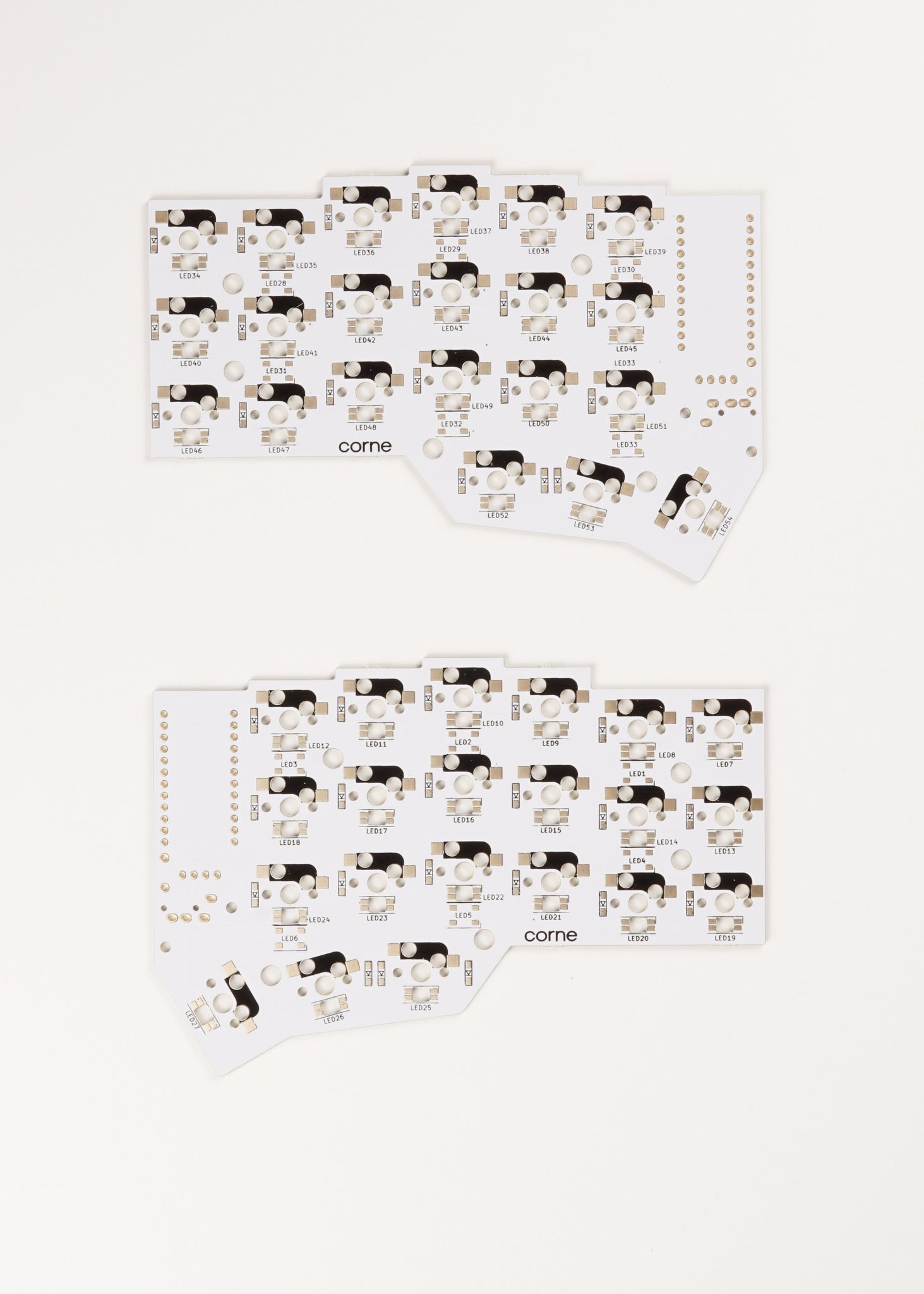

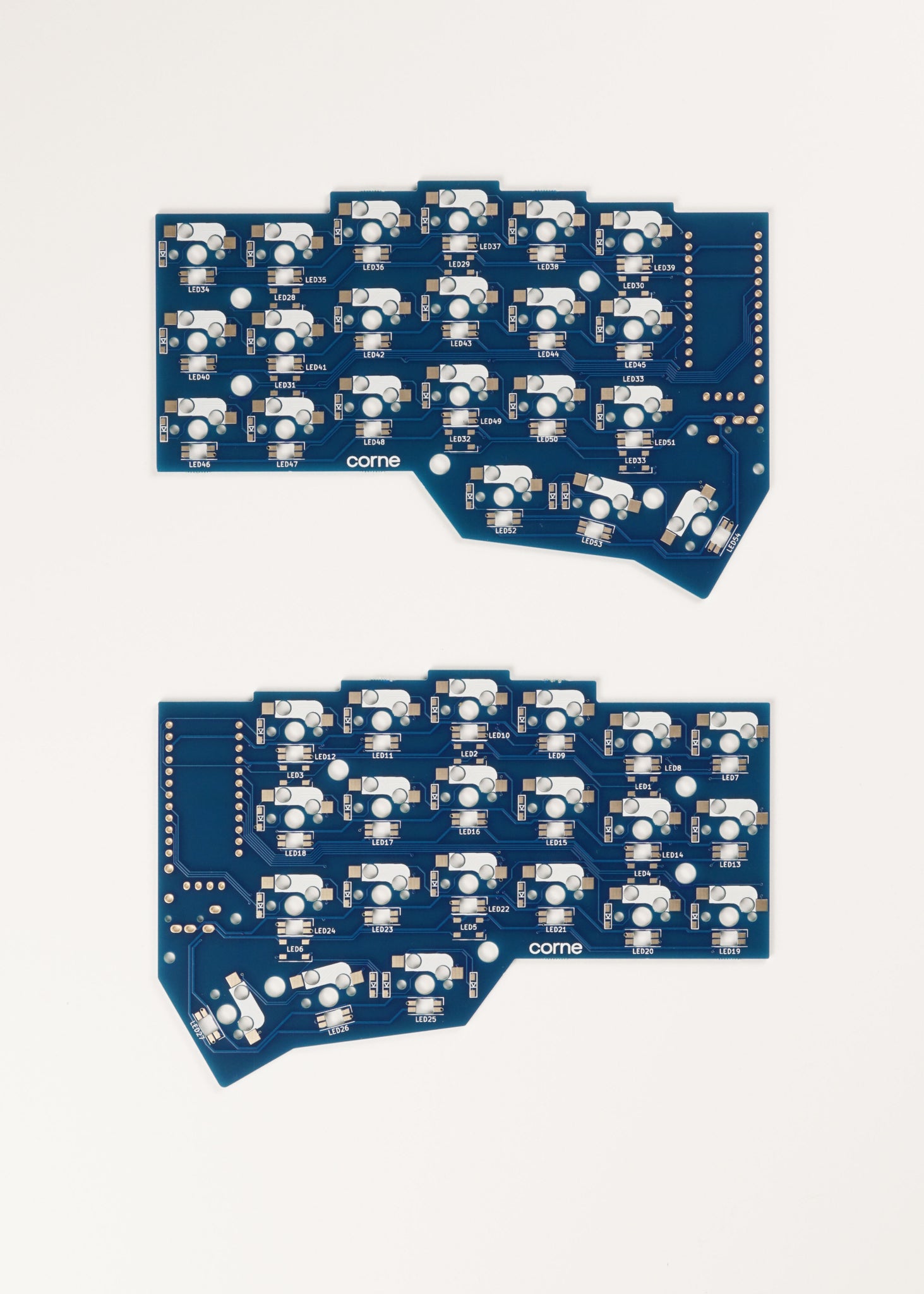

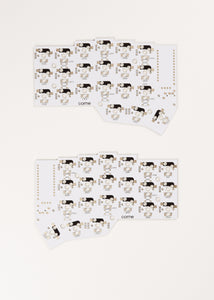

This particular Corne PCB variant includes footprints for Kailh MX Hotswap Sockets and must be used with Cherry MX compatible switches.

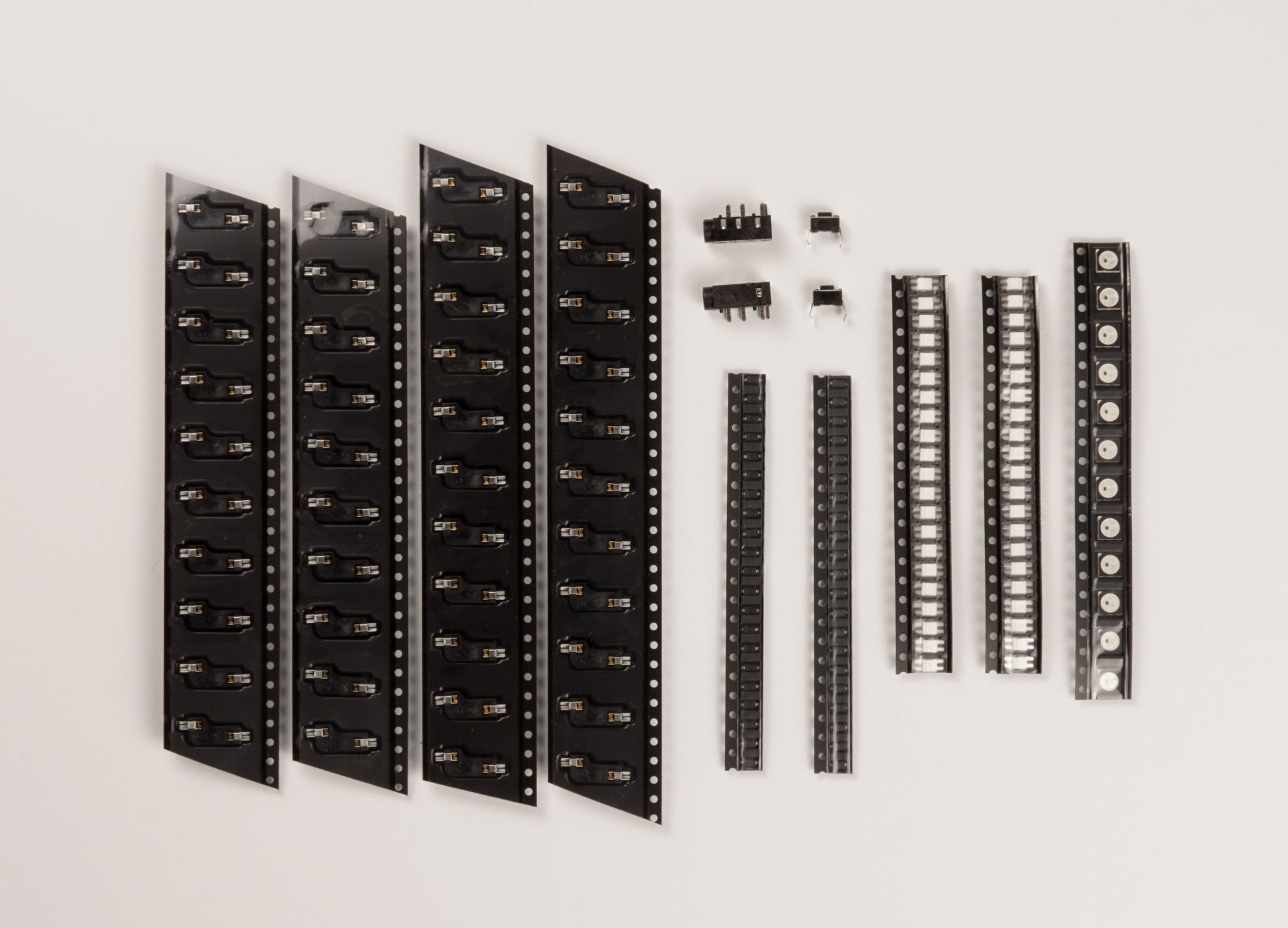

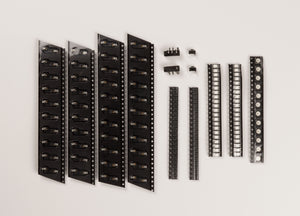

Kits must be soldered in order to be used. There is no option for the kits to come assembled. The following components are included with each kit. Please refer to this build guide for information on how to assemble.
|12||WS2812B RGB LED|
|42||SK6812MINI-E RGB LED|
|42||Surface Mount Diodes|
|42||Kailh MX Sockets|
The following components are required in order to have a completed keyboard.
|2||Pro Micro or equivalent|
|1||Corne Keyboard Case|
|42||MX Compatible Switches|
|42||MX Compatible Keycaps|
The following components are optional and must be purchased separately.
